Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

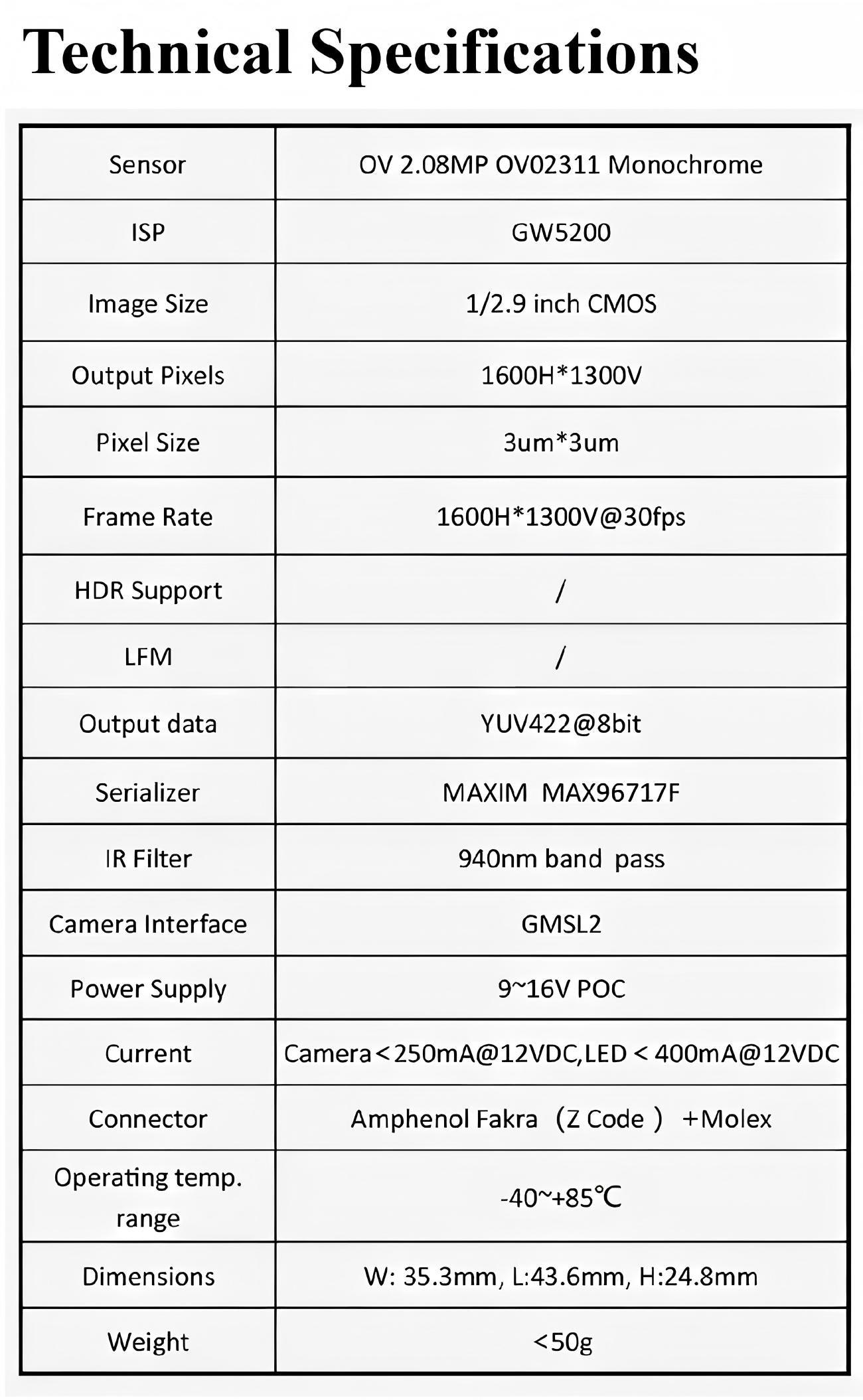

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | OV 2.08MP OV02311 Monochrome |
| ISP | GW5200 |
| Image Size | 1/2.9 inch CMOS |
| Output Pixels | 1600H*1300V |
| Pixel Size | 3um*3um |
| Frame Rate | 1600H*1300V@30fps |
| HDR Support | / |
| LFM | / |
| Output data | YUV422@8bit |
| Serializer | MAXIM MAX96717F |
| IR Filter | 940nm band pass |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | Camera<250mA@12VDC, LED < 400mA@12VDC |
| Connector | Amphenol Fakra (Z Code) + Molex |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 35.3mm, L:43.6mm, H:24.8mm |
| Weight | <50g |
-
Contact Seller:
+861368646****
SENSING presents 32 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across Industrial Cameras.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from SENSING.
