Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

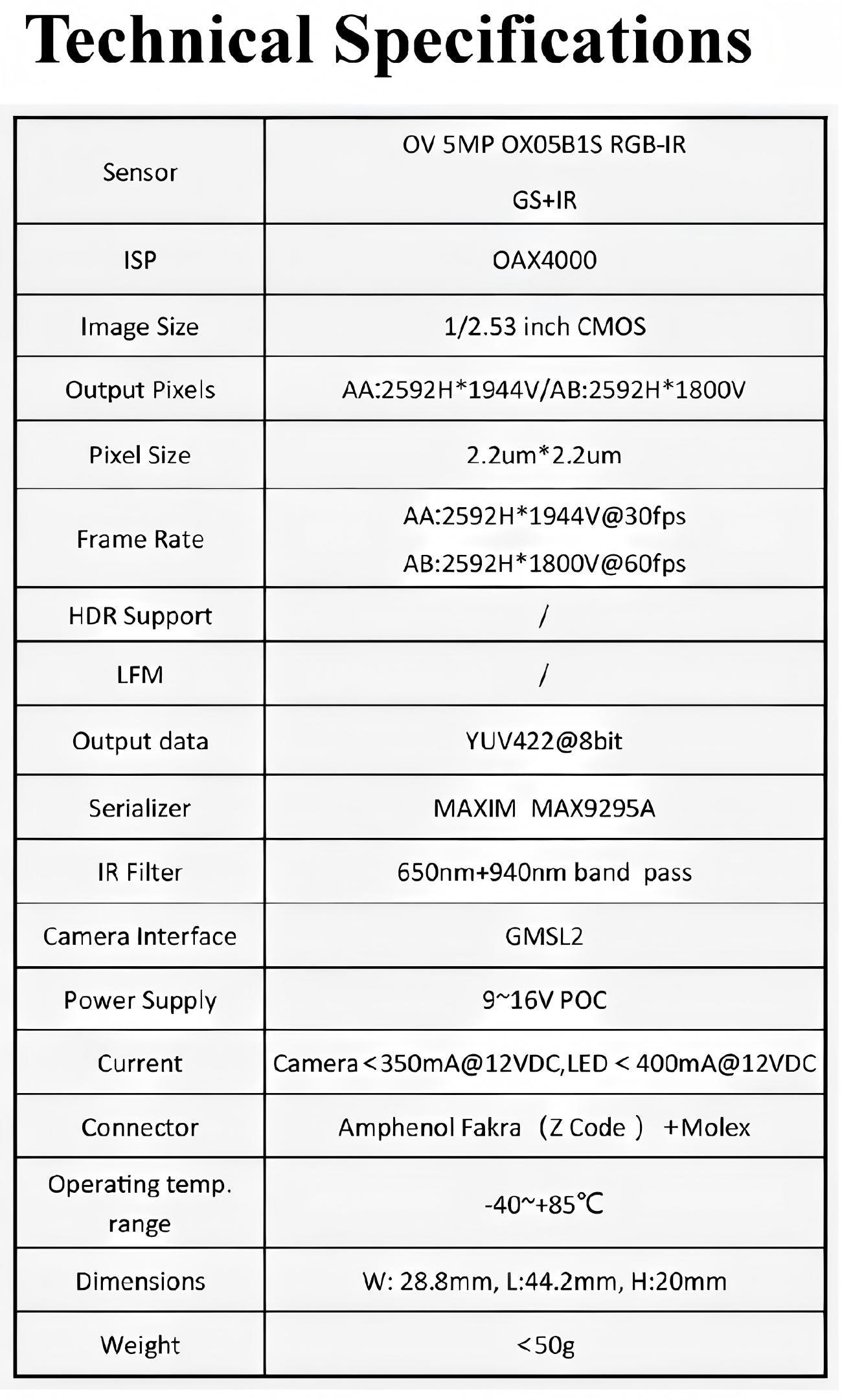

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | OV 5MP OX05B1S RGB-IR GS+IR |
| ISP | OAX4000 |
| Image Size | 1/2.53 inch CMOS |
| Output Pixels | AA:2592H*1944V/AB:2592H*1800V |
| Pixel Size | 2.2um*2.2um |
| Frame Rate | AA:2592H*1944V@30fps AB:2592H*1800V@60fps |
| HDR Support | / |
| LFM | / |
| Output data | YUV422@8bit |
| Serializer | MAXIM MAX9295A |
| IR Filter | 650nm+940nm band pass |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | Camera <350mA@12VDC, LED < 400mA@12VDC |
| Connector | Amphenol Fakra (Z Code) + Molex |
| Operating temp. | -40~+85°C |
| Dimensions | W: 28.8mm, L:44.2mm, H:20mm |
| Weight | <50g |
-
