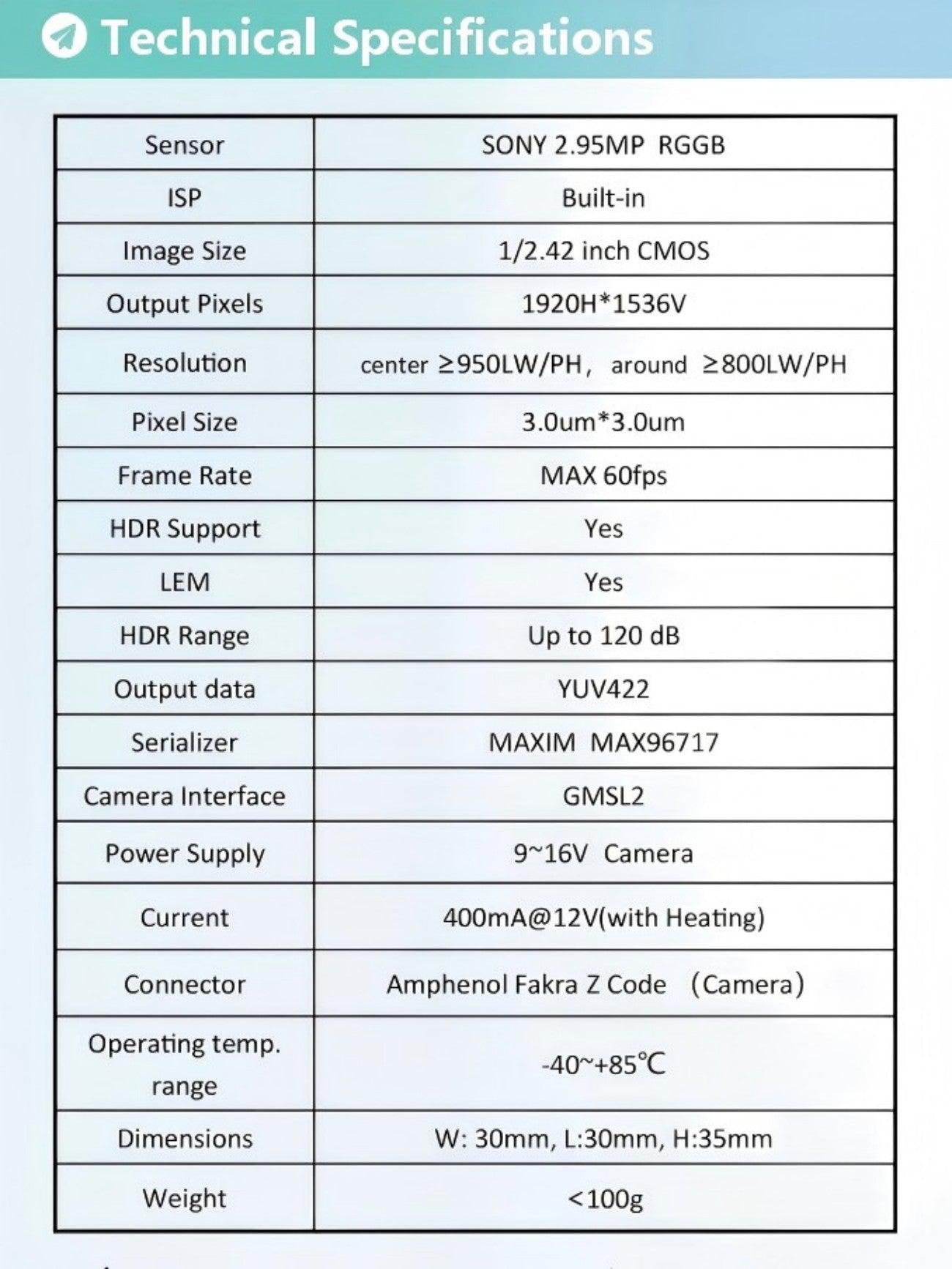

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | SONY 2.95MP RGGB |
| ISP | Built-in |
| Image Size | 1/2.42 inch CMOS |
| Output Pixels | 1920H*1536V @30fps (default) 1920H*1536V @60fps |
| Resolution | center ≥800LW/PH, around ≥600LW/PH (RedFox-D3GF only meet the center standard) |
| Pixel Size | 3.0um*3.0um |
| Frame Rate | MAX 60fps |
| HDR Support | Yes |
| LEM | Yes |
| HDR Range | Up to 120 dB |
| Output data | YUV422 |
| Serializer | MAXIM MAX96717G |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V Camera |
| Current | 400mA@12V(with Heating) |

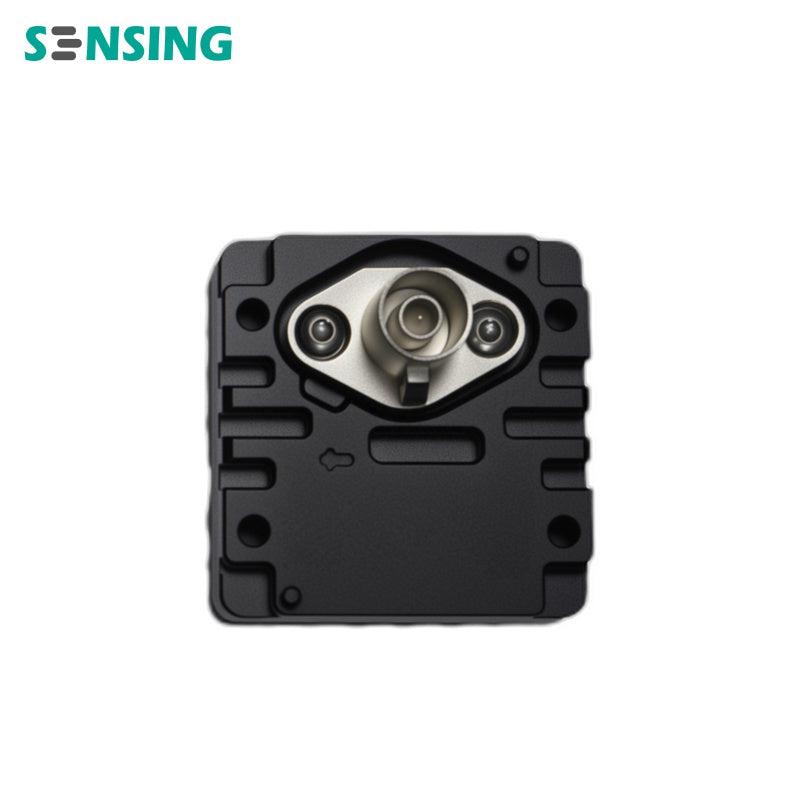

| Connector | Amphenol Fakra Z Code (Camera) |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 30mm, L:30mm |
| Weight | <100g |
SENSING-RedFox-D3Gx-Automatic-Defogging-Camera-Drawing.pdf
SENSING-RedFox-D3Gx-Automatic-Defogging-Camera-Datasheet.pdf
-
