Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

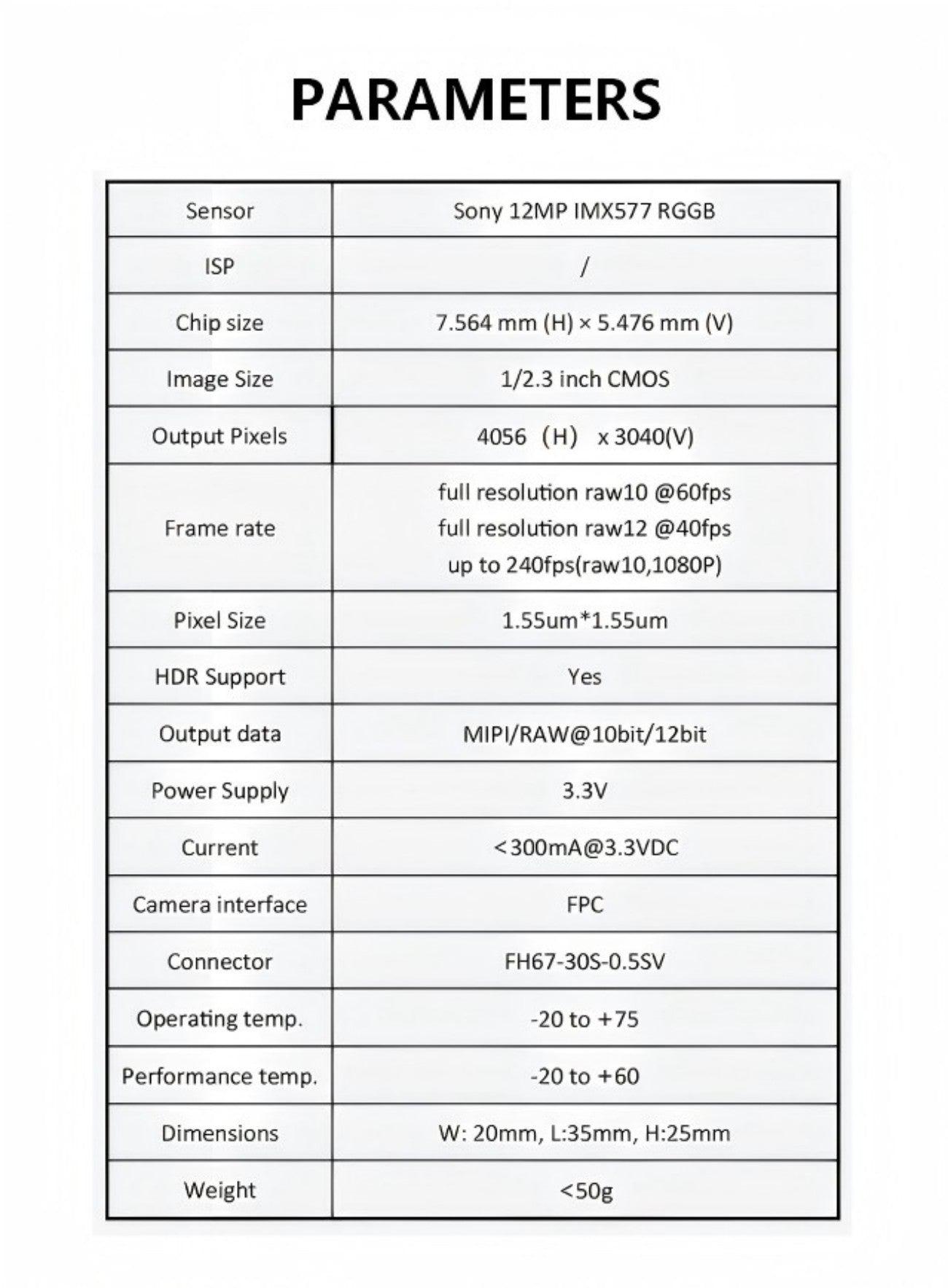

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | Sony 12MP IMX577 RGGB |
| ISP | / |
| Chip size | 7.564 mm (H) × 5.476 mm (V) |
| Image Size | 1/2.3 inch CMOS |
| Output Pixels | 4056 (H) × 3040(V) |
| Frame rate | full resolution raw10 @60fps full resolution raw12 @40fps up to 240fps(raw10,1080P) |
| Pixel Size | 1.55um*1.55um |
| HDR Support | Yes |
| Output data | MIPI/RAW@10bit/12bit |
| Power Supply | 3.3V |
| Current | <300mA@3.3VDC |
| Camera interface | FPC |
| Connector | FH67-30S-0.5SV |
| Operating temp. | -20 to +75 |
| Performance temp. | -20 to +60 |
| Dimensions | W: 20mm, L:35mm, H:25mm |
| Weight | <50g |
SENSING-SG12-IMX577C-MIPI-Drawing.pdf
-
