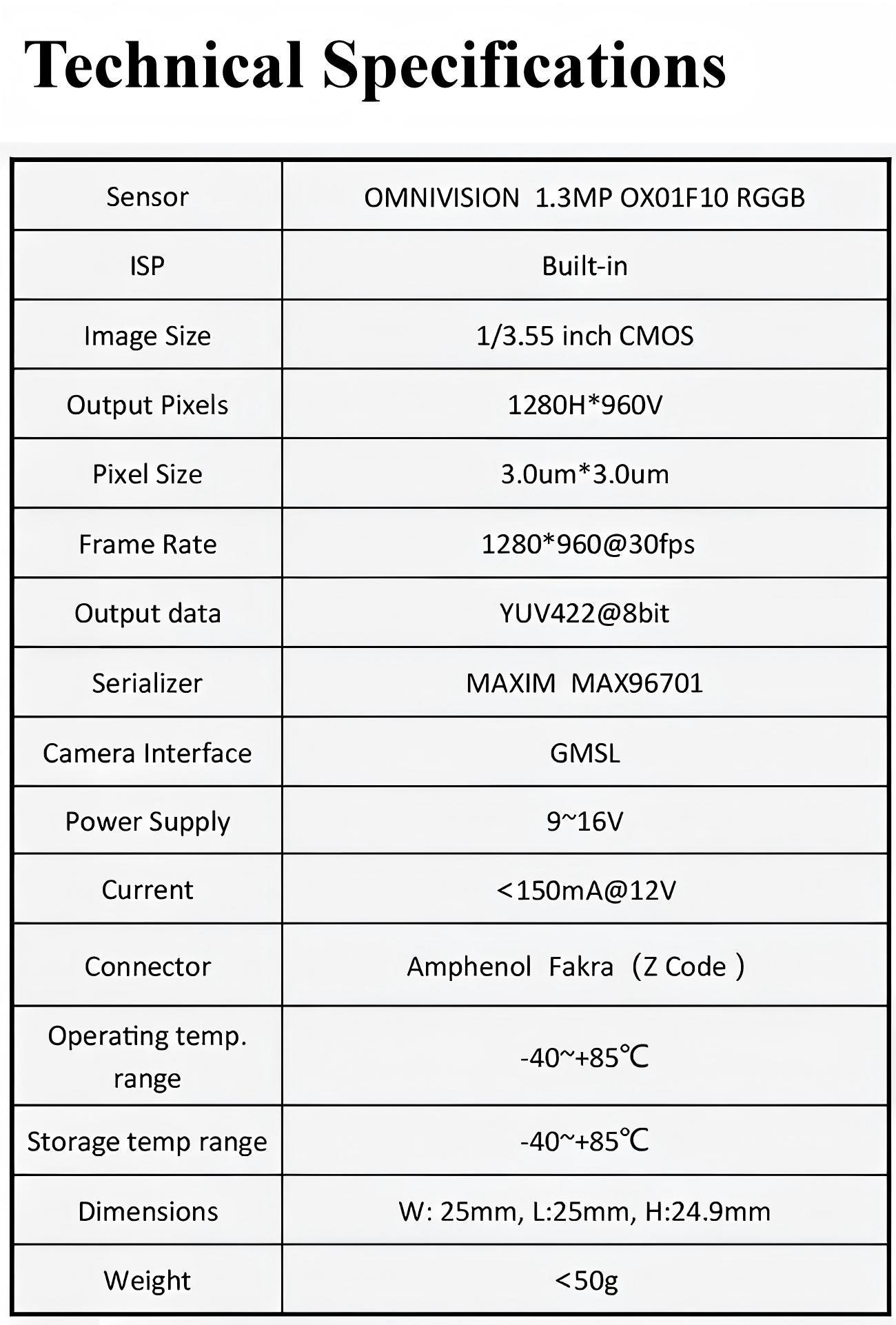

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | OMNIVISION 1.3MP OX01F10 RGGB |
| ISP | Built-in |
| Image Size | 1/3.55 inch CMOS |
| Output Pixels | 1280H*960V |
| Pixel Size | 3.0um*3.0um |
| Frame Rate | 1280*960@30fps |
| Output data | YUV422@8bit |
| Serializer | MAXIM MAX96701 |
| Camera Interface | GMSL |
| Power Supply | 9~16V |
| Current | <150mA@12V |
| Connector | Amphenol Fakra (Z Code) |
| Operating temp. range | -40~+85°C |
| Storage temp range | -40~+85°C |
| Dimensions | W: 25mm, L: 25mm, H: 24.9mm |
| Weight | <50g |
SENSING-SG1S-OX01F10C-G1G-Drawing.pdf
SENSING-SG1S-OX01F10C-G1G-Hxxx_Camera-Datasheet.pdf
-
