Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

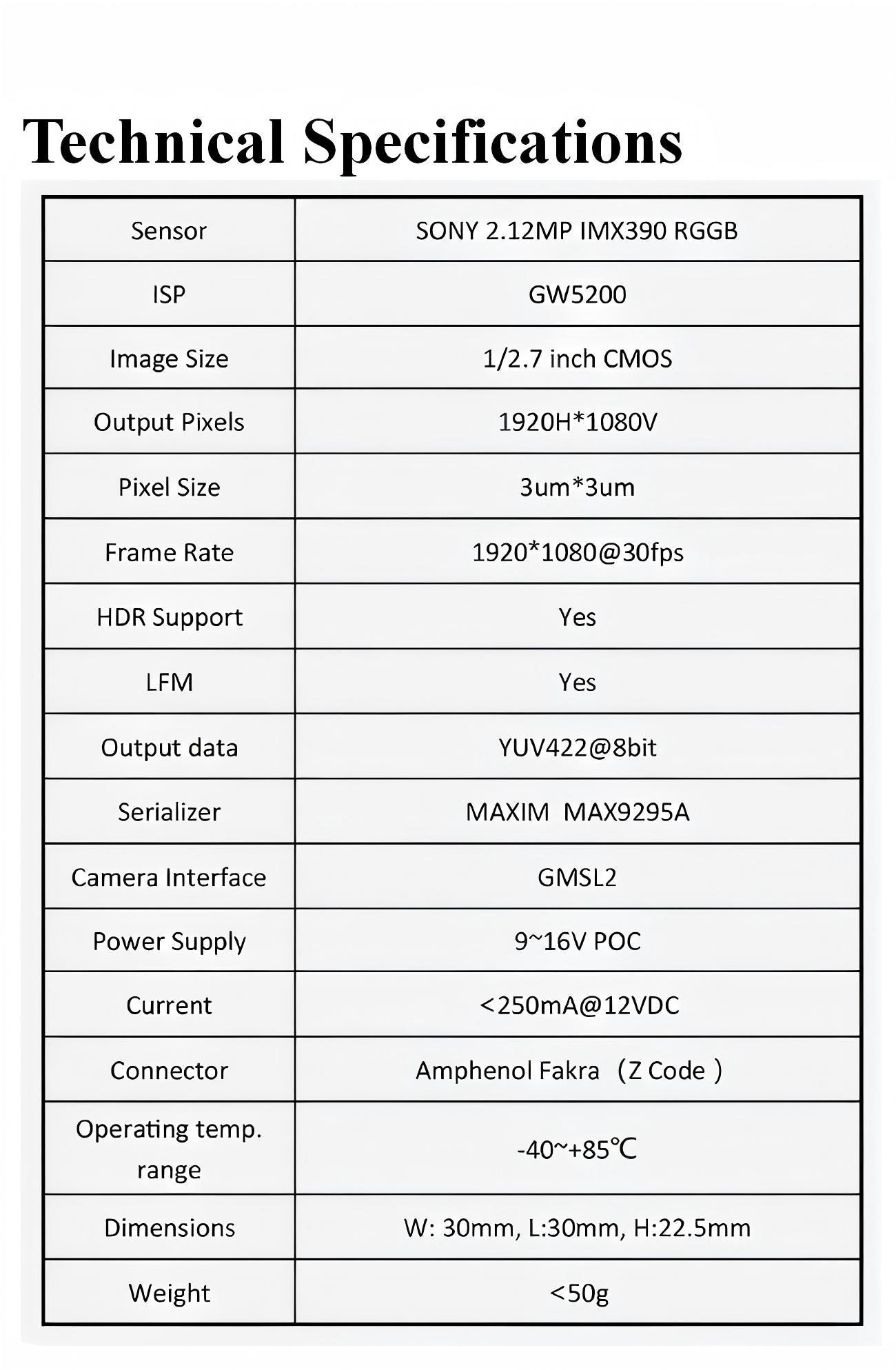

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | SONY 2.12MP IMX390 RGGB |
| ISP | GW5200 |
| Image Size | 1/2.7 inch CMOS |
| Output Pixels | 1920H*1080V |
| Pixel Size | 3um*3um |
| Frame Rate | 1920*1080@30fps |
| HDR Support | Yes |
| LFM | Yes |
| Output data | YUV422@8bit |
| Serializer | MAXIM MAX9295A |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | <250mA@12VDC |
| Connector | Amphenol Fakra (Z Code) |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 30mm, L: 30mm, H: 22.5mm |
| Weight | <50g |
SENSING-SG2-IMX390C-5200-G2A-Drawing.pdf
SENSING-SG2-IMX390C-5200-G2A-Datasheet.pdf
-
