Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

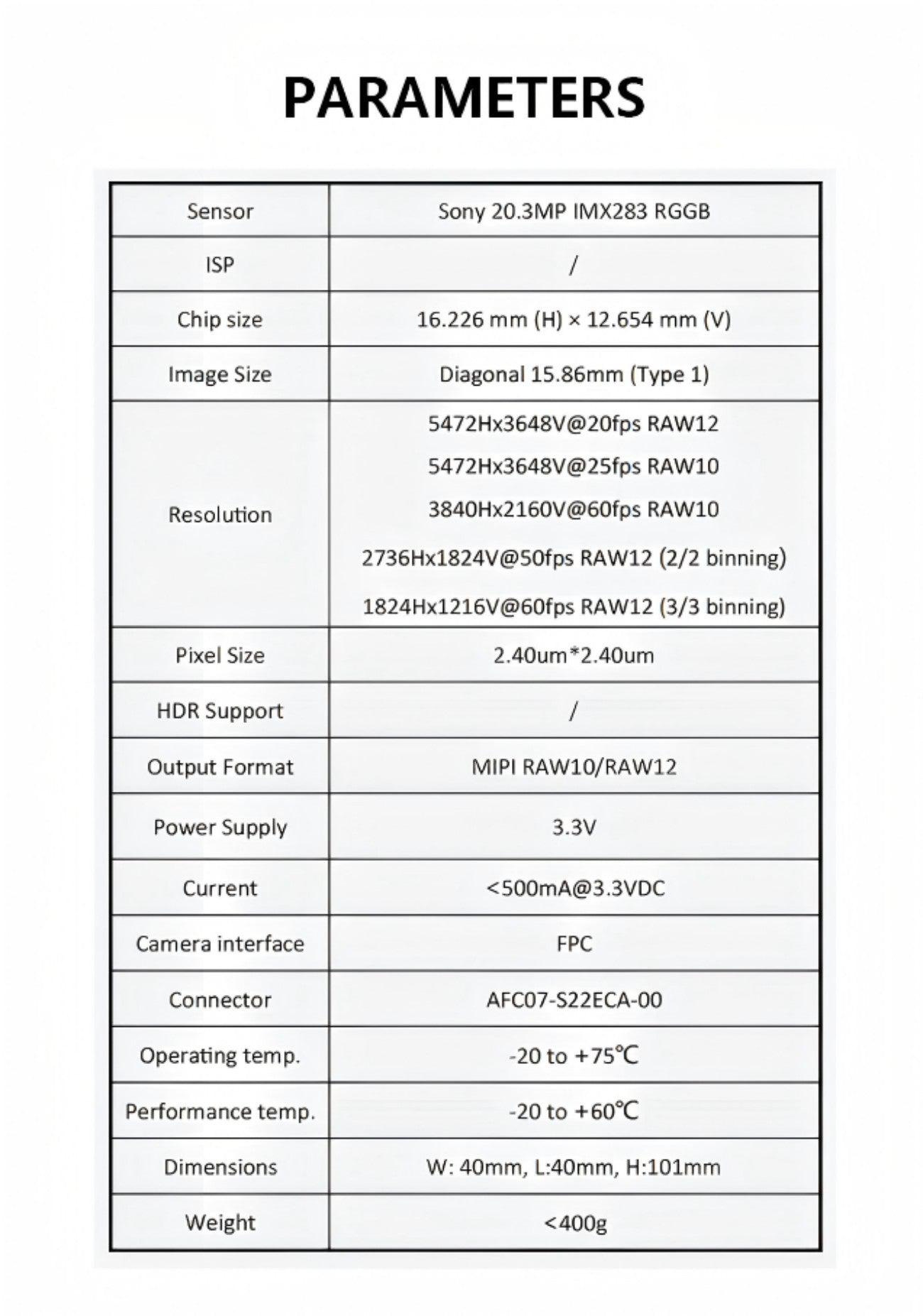

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | Sony 20.3MP IMX283 RGGB |
| ISP | / |
| Chip size | 16.226 mm (H) × 12.654 mm (V) |
| Image Size | Diagonal 15.86mm (Type 1) |
| Resolution | 5472Hx3648V@20fps RAW12 5472Hx3648V@25fps RAW10 3840Hx2160V@60fps RAW10 2736Hx1824V@50fps RAW12 (2/2 binning) 1824Hx1216V@60fps RAW12 (3/3 binning) |
| Pixel Size | 2.40um*2.40um |
| HDR Support | / |
| Output Format | MIPI RAW10/RAW12 |
| Power Supply | 3.3V |
| Current | <500mA@3.3VDC |
| Camera interface | FPC |
| Connector | AFC07-S22ECA-00 |
| Operating temp. | -20 to +75℃ |
| Performance temp. | -20 to +60℃ |
| Dimensions | W: 40mm, L: 40mm, H: 101mm |
| Weight | <400g |
SENSING-SG20-IMX283C-MIPI-Drawing.pdf
-
Contact Seller:
+861368646****
SENSING presents 32 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across Industrial Cameras.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from SENSING.
