Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

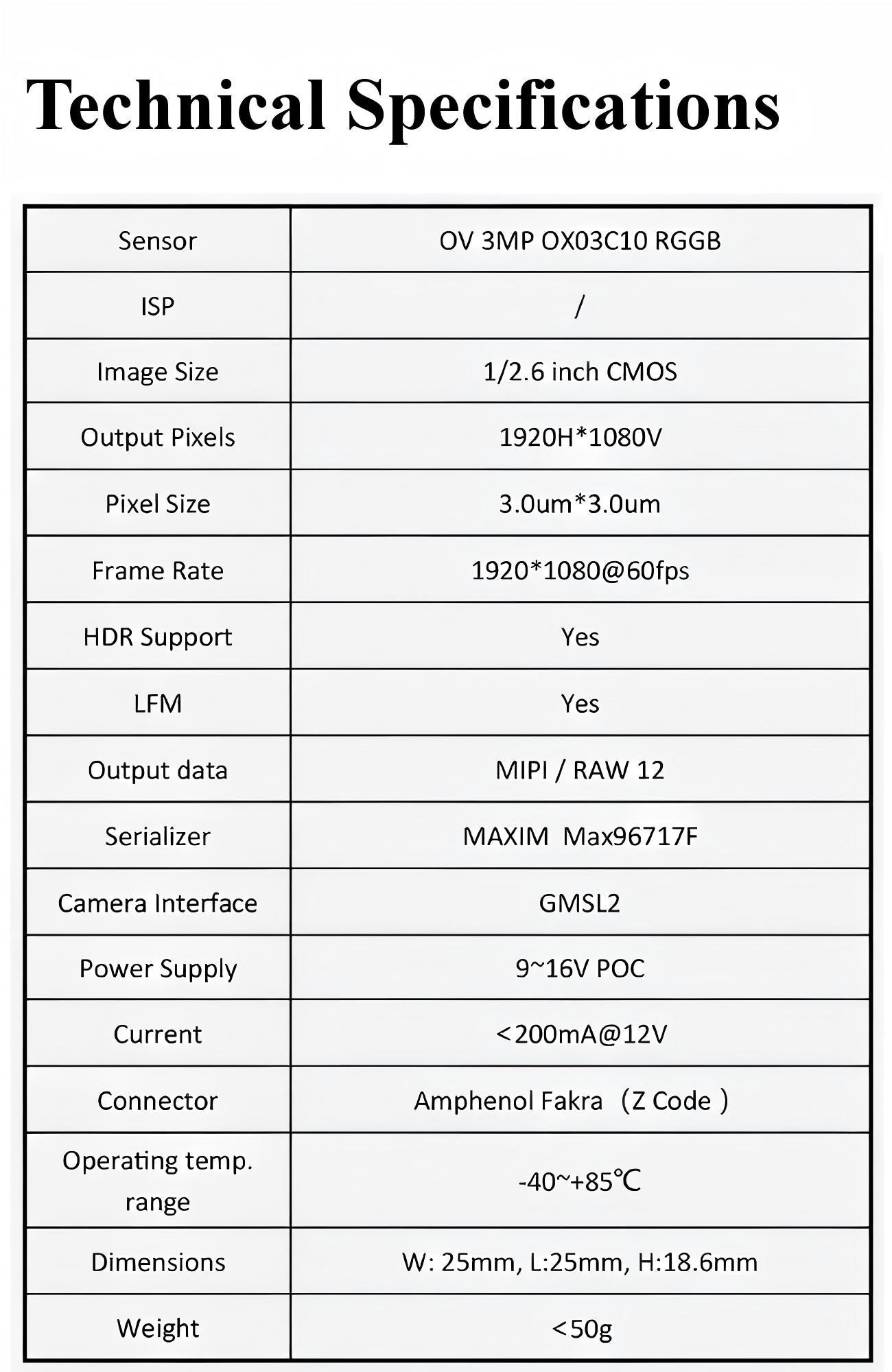

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | OV 3MP OX03C10 RGGB |
| ISP | / |
| Image Size | 1/2.6 inch CMOS |
| Output Pixels | 1920H*1080V |
| Pixel Size | 3.0um*3.0um |
| Frame Rate | 1920*1080@60fps |
| HDR Support | Yes |
| LFM | Yes |
| Output data | MIPI / RAW 12 |
| Serializer | MAXIM Max96717F |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | <200mA@12V |
| Connector | Amphenol Fakra (Z Code) |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 25mm, L: 25mm, H: 18.6mm |
| Weight | <50g |
SENSING-SG2S-OX03CC-G2F-Drawing.pdf
SENSING-SG2S-OX03CC-G2F-Datasheet.pdf
-
