Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

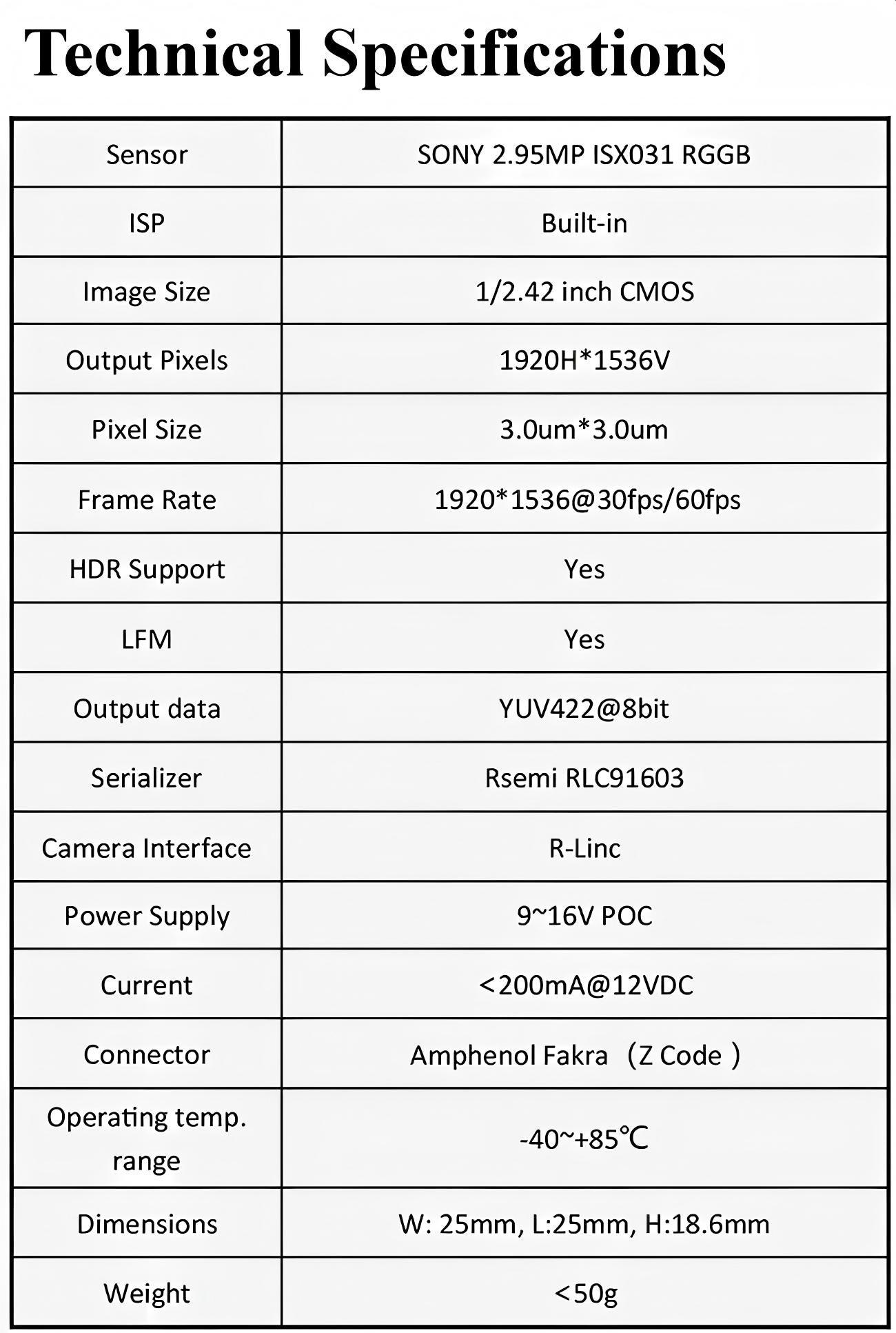

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | SONY 2.95MP ISX031 RGGB |
| ISP | Built-in |
| Image Size | 1/2.42 inch CMOS |
| Output Pixels | 1920H*1536V |
| Pixel Size | 3.0um*3.0um |
| Frame Rate | 1920*1536@30fps/60fps |
| HDR Support | Yes |
| LFM | Yes |
| Output data | YUV422@8bit |
| Serializer | Rsemi RLC91603 |
| Camera Interface | R-Linc |
| Power Supply | 9~16V POC |
| Current | <200mA@12VDC |
| Connector | Amphenol Fakra (Z Code) |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 25mm, L: 25mm, H: 18.6mm |
| Weight | <50g |
SENSING-SG3S-ISX031C-R1A-Drawing.pdf
SENSING-SG3S-ISX031C-R1A-Datasheet.pdf
-
