Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

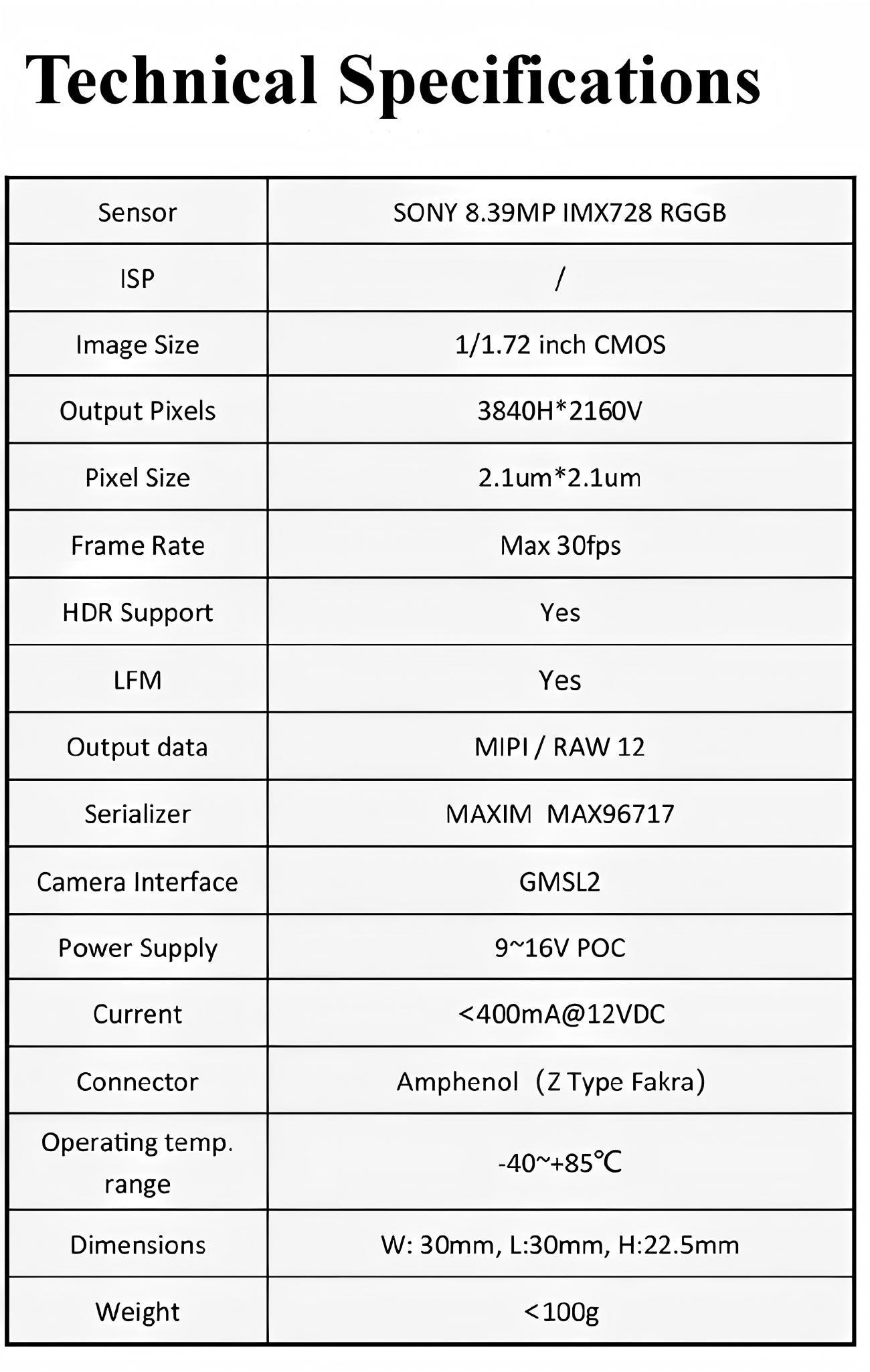

Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | SONY 8.39MP IMX728 RGGB |
| ISP | / |
| Image Size | 1/1.72 inch CMOS |
| Output Pixels | 3840H*2160V |
| Pixel Size | 2.1um*2.1um |
| Frame Rate | Max 30fps |
| HDR Support | Yes |
| LFM | Yes |
| Output data | MIPI / RAW 12 |
| Serializer | MAXIM MAX96717 |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | <400mA@12VDC |
| Connector | Amphenol (Z Type Fakra) |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 30mm, L: 30mm, H: 22.5mm |
| Weight | <100g |
SENSING-SG8-IMX728C-G2G-Drawing.pdf
SENSING-SG8-IMX728C-G2G-Datasheet.pdf
-
