Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | SIMO-LS-10H | SIMO-LS-20H | SIMO-LS-30H |
|---|---|---|---|

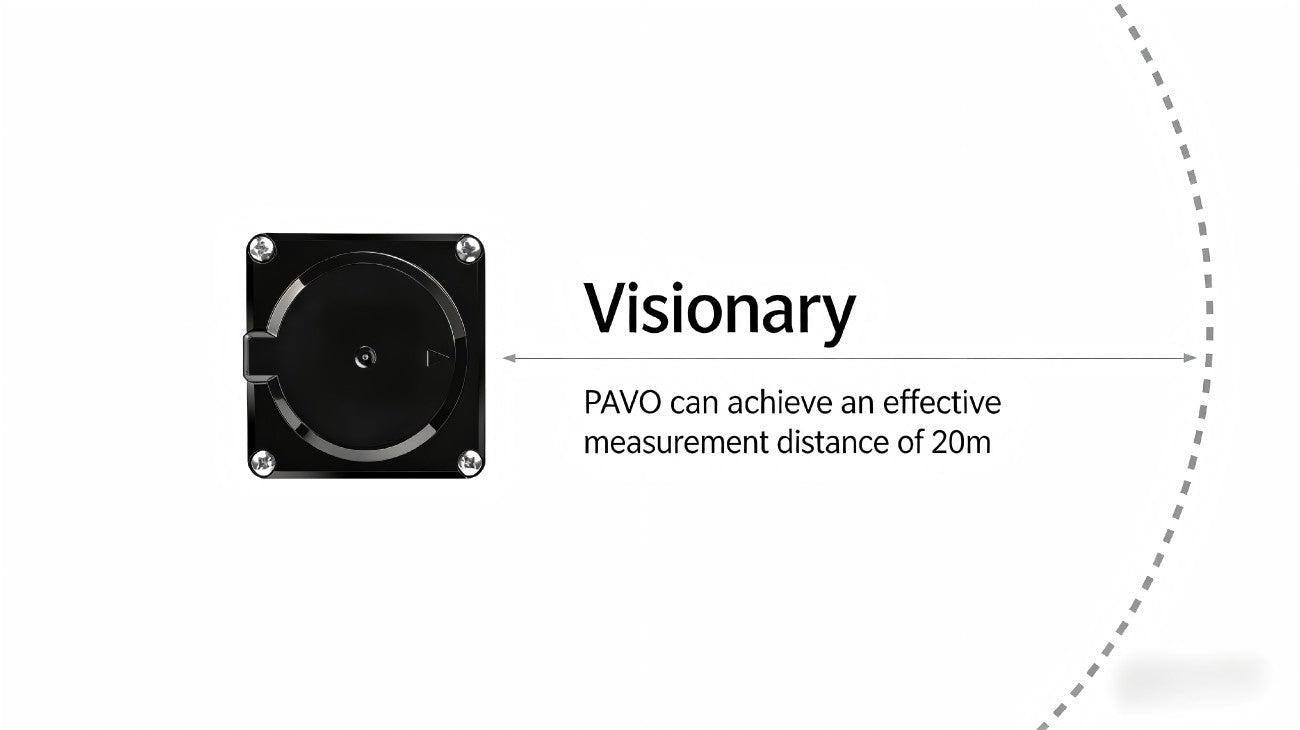

| Detection Range @90% Reflectivity | 10m | 20m | 30m |
| Detection Range @10% Reflectivity | 5m | 8m | 10m |
| Ranging Accuracy | ±30mm | ±30mm | ±30mm |
| Scanning Range | 270° | 270° | 270° |
| Point Cloud Merging | 1/2/4/8 points | 1/2/4/8 points | 1/2/4/8 points |
| Scan Frame Rate | 10-30Hz | 10-30Hz | 10-30Hz |

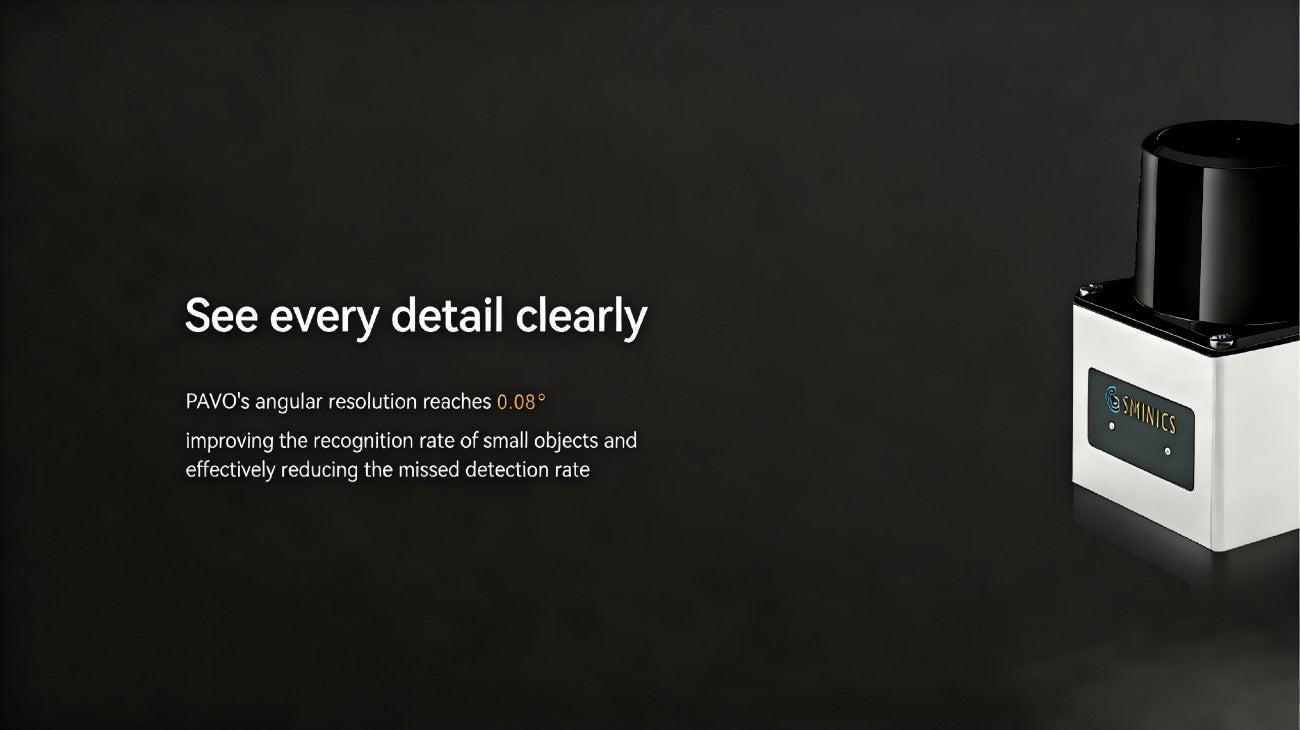

| Min Angular Resolution | 0.08° (adjustable) | 0.08° (adjustable) | 0.08° (adjustable) |
| Supply Voltage | DC 12V-24V | DC 12V-24V | DC 12V-24V |
| Operating Current | 0.21A @12V (typical) | 0.21A @12V (typical) | 0.21A @12V (typical) |
| Laser Source | 905nm class 1 | 905nm class 1 | 905nm class 1 |
| Power Consumption | 2W | 2W | 2W |
| Data Interface | Ethernet 100BASE-TX | Ethernet 100BASE-TX | Ethernet 100BASE-TX |
| Startup Time | <10s | <10s | <10s |
| Indicators | Power indicator, Status indicator | Power indicator, Status indicator | Power indicator, Status indicator |
| Ambient Light Immunity | >50,000 lux | >50,000 lux | >50,000 lux |
| Operating Temperature | -10°C ~ 55°C | -10°C ~ 55°C | -10°C ~ 55°C |
| Storage Temperature | -30°C ~ 75°C | -30°C ~ 75°C | -30°C ~ 75°C |
| Humidity | <80% | <80% | <80% |
| Operating Life | 5 years (motor life) | 5 years (motor life) | 5 years (motor life) |
| Vibration Test | 10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each |
10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each |
10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each |
| Ingress Protection | IP67 | IP67 | IP67 |

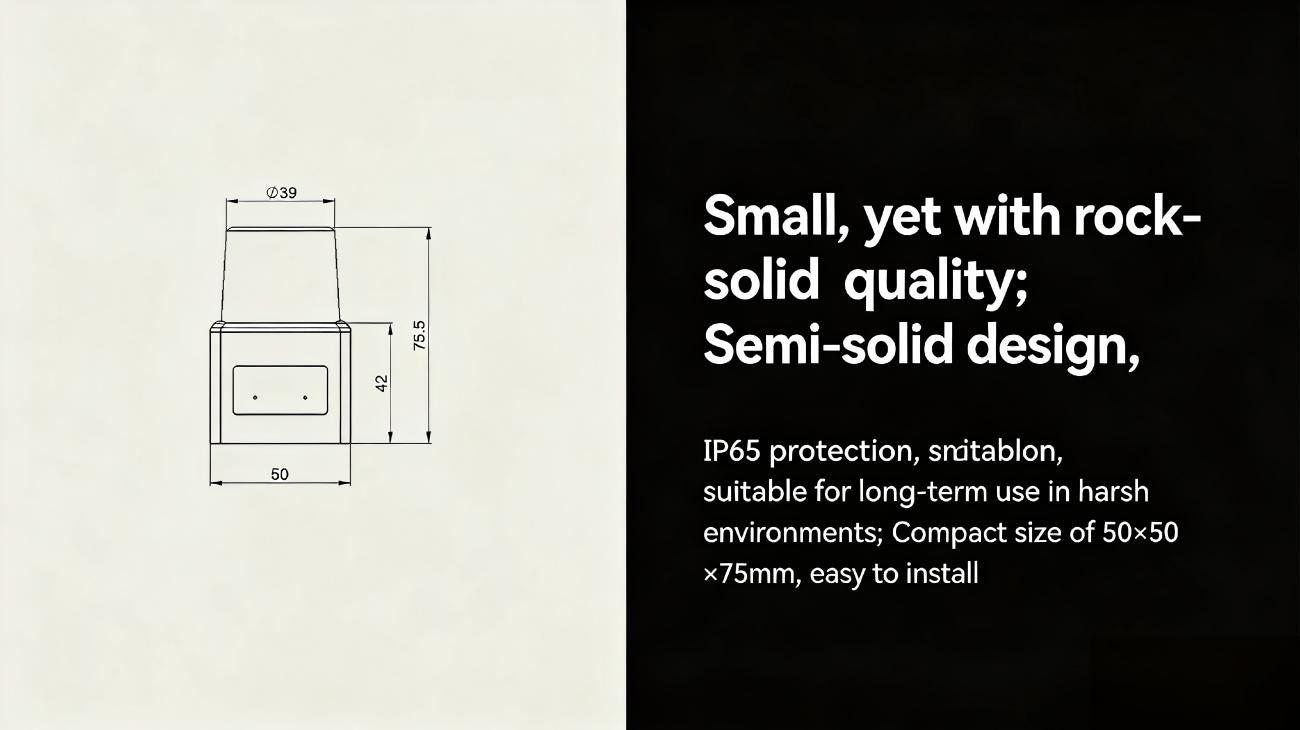

| Dimensions | 50×50×76mm | 50×50×76mm | 50×50×76mm |
| Weight | 148g (without cable) | 148g (without cable) | 148g (without cable) |
-
