Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications

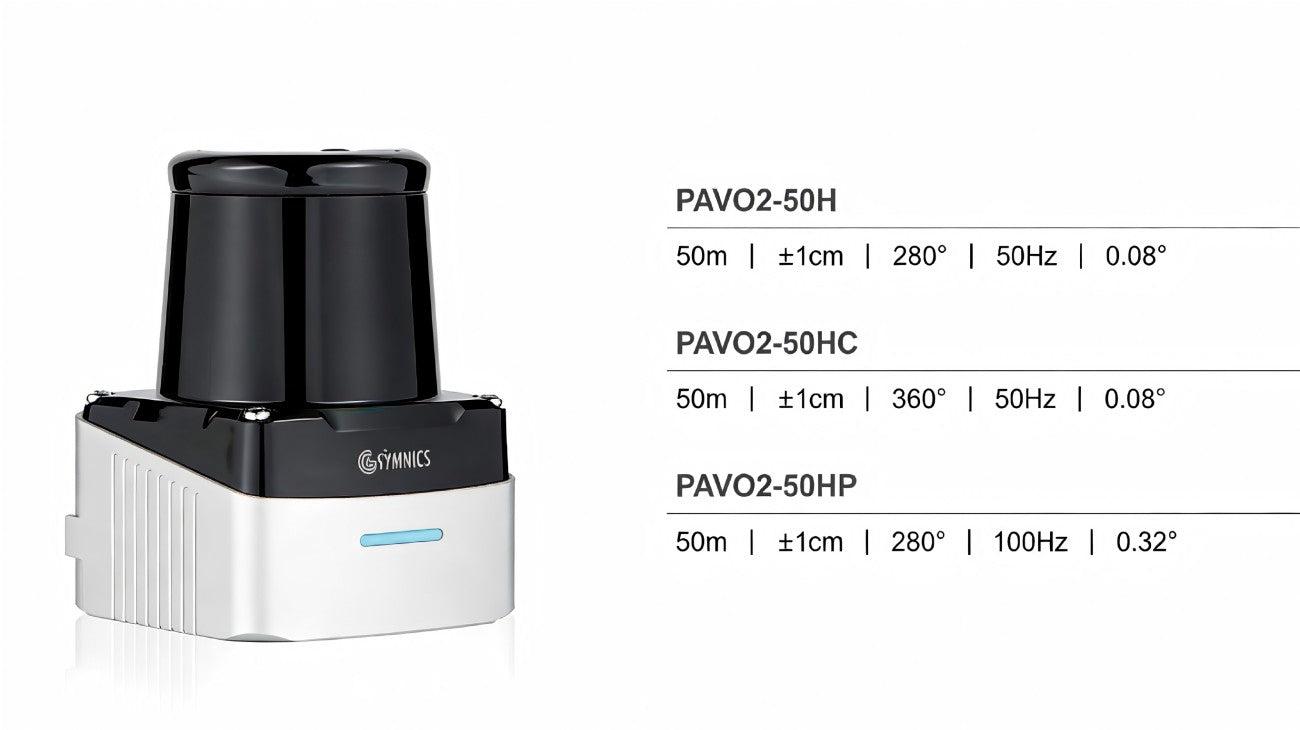

| Parameter | PAVO2‑LS‑50H | PAVO2‑LS‑50HC | PAVO2‑LS‑50HP |
|---|---|---|---|
| Detection Range @90% Reflectivity | 50m | 50m | 50m |
| Detection Range @10% Reflectivity | 20m | 20m | 20m |
| Ranging Accuracy | ±20mm | ±20mm | ±20mm |
| Short Range Accuracy (0.1m~15m) | ±10mm | ±10mm | ±10mm |
| Scanning Range | 280° | 360° | 280° |
| Vertical Field of View | ±0.5° | ±0.5° | ±0.5° |
| Scan Frame Rate | 25Hz/50Hz | 100Hz | |
| Min Angular Resolution | 0.08°/0.16°/0.32° | 0.32° | |
| Supply Voltage | 9V-26V | 9V-26V | 9V-26V |
| Operating Current | 0.25A @12V | 0.25A @12V | 0.25A @12V |
| Laser Source | 905nm, Class 1 | 905nm, Class 1 | 905nm, Class 1 |
| Power Consumption | 3W (MAX) | 3W (MAX) | 3W (MAX) |
| Data Interface | Ethernet 100BASE-TX | Ethernet 100BASE-TX | Ethernet 100BASE-TX |
| Startup Time | <20s | <20s | <20s |
| Ambient Light Immunity | >80,000 LUX | >80,000 LUX | >80,000 LUX |
| Operating Temperature | -10°C ~ 55°C | -10°C ~ 55°C | -10°C ~ 55°C |
| Storage Temperature | -30°C ~ 75°C | -30°C ~ 75°C | -30°C ~ 75°C |
| Humidity | <80% | <80% | <80% |
| Operating Life | 5 years (motor life) | 5 years (motor life) | 5 years (motor life) |
| Vibration Test | 10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each |
10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each |
10-55Hz, 0.75mm amplitude, X/Y/Z axes, 2h each; 50-200Hz, 196m/s² (20G), sweep 2min/cycle, X/Y/Z axes, 2h each |
| Ingress Protection | IP67 | IP67 | IP67 |
| Dimensions | 60×60×80mm | 60×60×80mm | 60×60×80mm |
| Weight | 250g (without cable) | 250g (without cable) | 250g (without cable) |
-
Contact Seller:
+861368646****
SIMINICS presents 3 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across LiDAR & Range Sensors.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from SIMINICS.
