Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 4210AIO |
| Nominal Voltage | 24V±10% |
| Power | 35W |
| Nominal Torque | 0.33N·m |
| Nominal Speed | 1000RPM |
| Max Speed | 1500RPM |
| Nominal Current | 1.6A |
| Return Signal | multi-turn absolute value encoder(One lap 15 bits, multiple laps 9 bits, total 24 bits) |
| Communication Interface | CAN |
| Max Input Pulse Frequency | 500KHz |
| Pulse Command Mode | Pulse+ Direction, A+B |
| Position Sampling Frequency | 2KHz |
| Cooling-down Method | Natural cooling |
| Weight | 330g |
| Defencive Function | Blocking and turning alarm |
| Humidity | 5~95% |
| Working Temperature | 0~40℃ |
| Max Temperature | 85℃ |

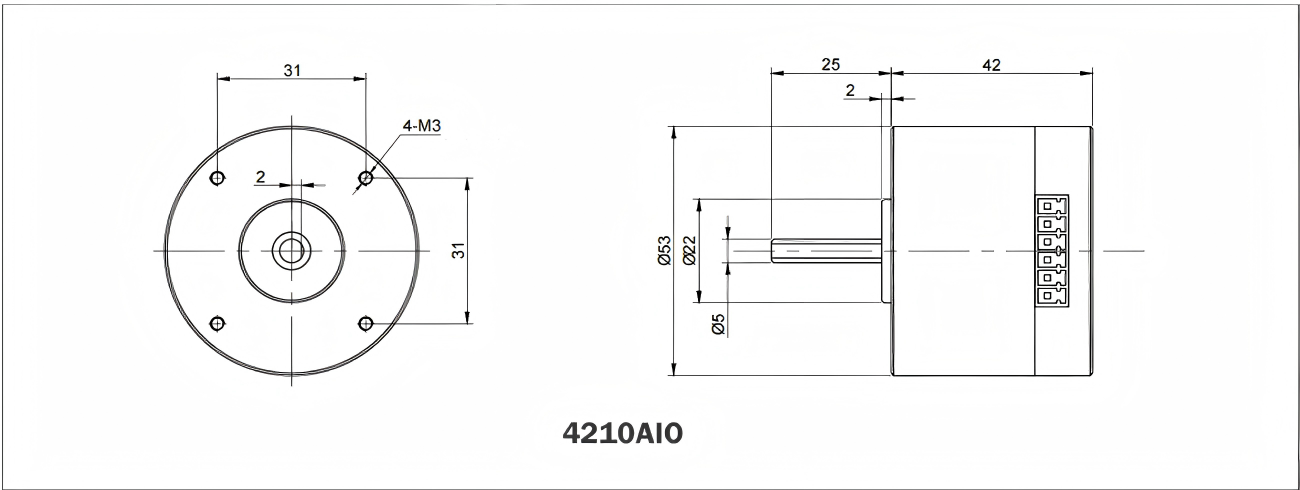

4210AIO_installation_diagram.pdf
-
