Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal voltage | 24V |
| Voltage range | 10~28V |
| Nominal current | 1.2A |
| Nominal power | 28.8W |
| Nominal torque | 0.25N.M |
| Nominal speed | 125rpm |
| No-load max speed |
1013rpm |
| Peak torque | 0.35N.m |
| Peak current | 1.85A |
| Speed constant |
42.21rpm/v |
| Torque constant | 0.17N.M/A |
| Number of pole pairs | 11Pairs |
| Phase resistance | 12.57Ω |
| Phase inductance | 2.48Mh |
| Communication | RS485 / CAN |
| Encoder type |
Single-turn absolute |
| Resolution | 14bit |
| Motor weight | 114g |
| Working temperature | -20~80℃ |

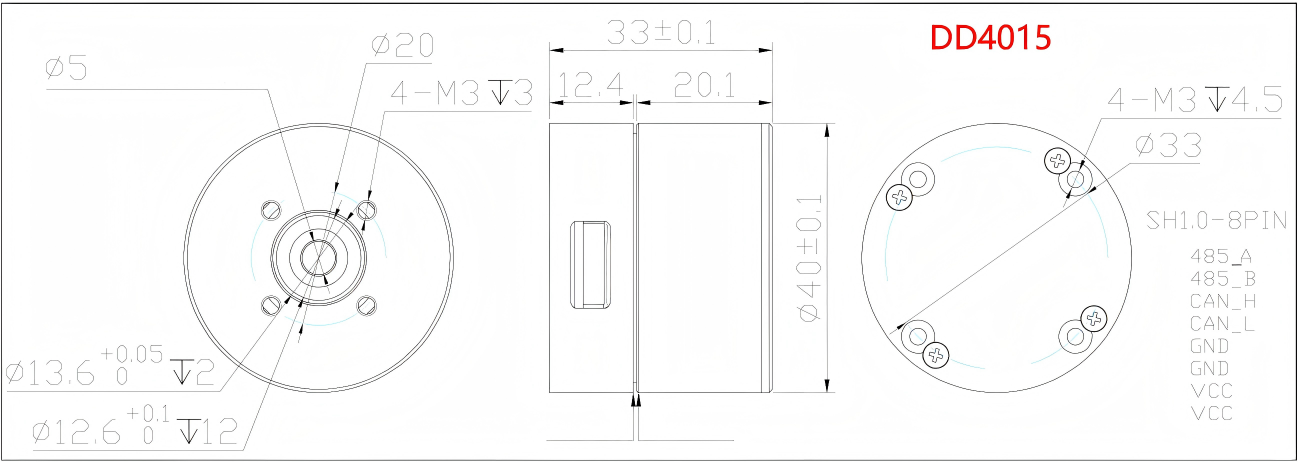

DD4015_installation_drawing.pdf
SteadyWin_DD4015_motor.stp
-
Contact Seller:
+861368646****
SteadyWin presents 26 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across Servo Motors.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from SteadyWin.
