Technical Specifications
| Parameter | Value |
|---|---|
| Model | GB1806 |
| Nominal Voltage | 12V |
| Nominal Torque | 0.03N·m |
| Nominal Speed | 800RPM |
| Max Speed | 5017RPM |
| Nominal Current | 0.66A |
| Stall torque | 0.06N·m |
| Stall current | 1A |
| Winding turns of motor | 45T |
| Phase resistance | 5.9Ω |
| Phase inductance | 1.3Mh |
| Speed constant | 395rpm/v |
| Torque constant | 0.06N.M/A |
| Rotor inertia | 40gcm^2 |
| Number of pole pairs | 7Pairs |
| Motor weight without encoder | 20g |
| Motor weight with encoder | 25g |
| Max demagnetize temperature | 120℃ |
| Working Temperature | 20~80℃ |

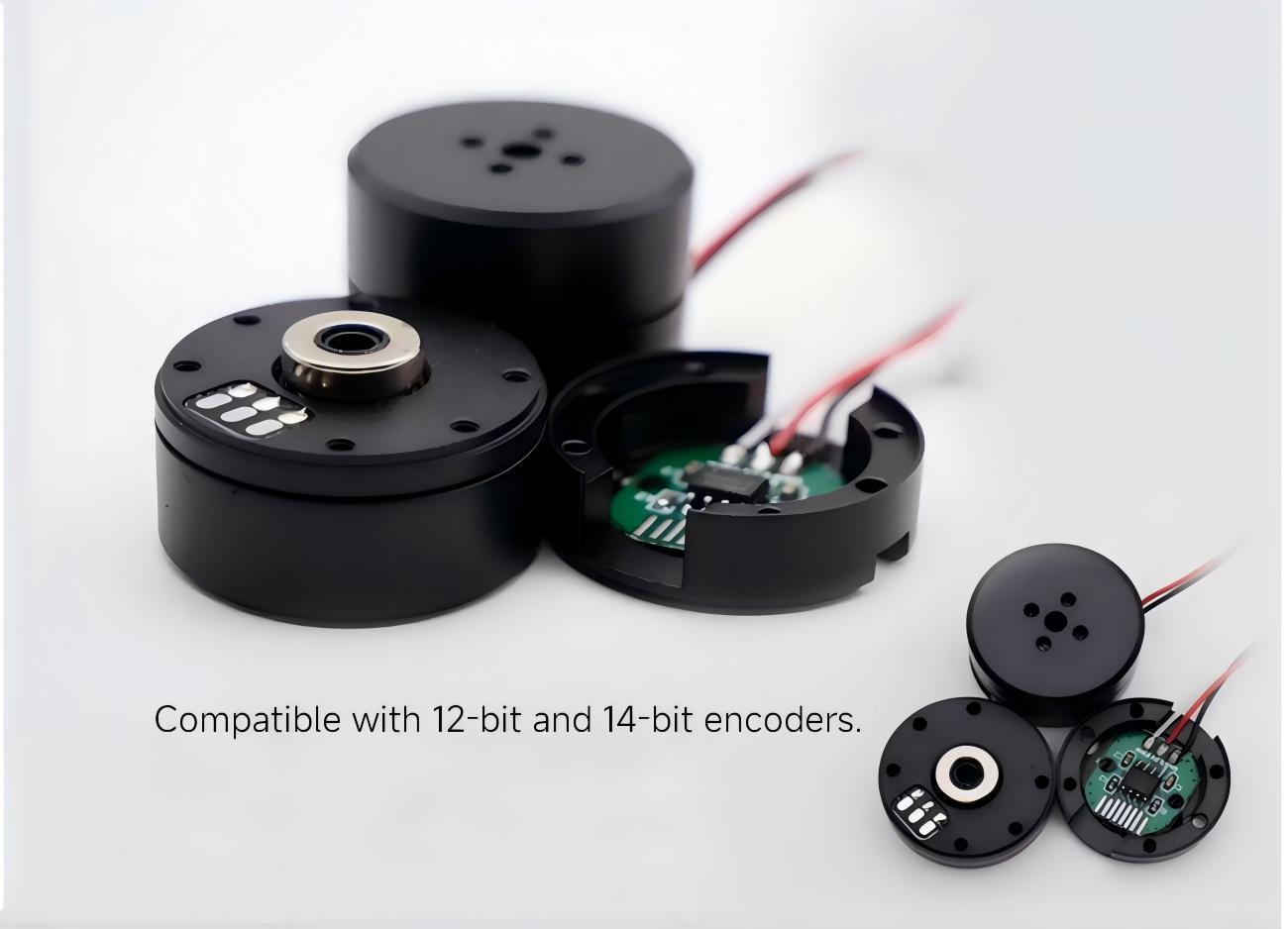

| Encoder type |
AS5048A |
-
