Technical Specifications
| Parameter | Value |
|---|---|
| Model | GB4315 |
| Nominal Voltage | 24V |
| Nominal Torque | 0.28N·m |
| Nominal Speed | 238RPM |
| Max Speed | 660RPM |
| Nominal Current | 0.59A |
| Stall torque | 0.42N·m |
| Stall current | 0.9A |
| Winding turns of motor | 60T |
| Phase resistance | 15.2Ω |
| Phase inductance | 6.56Mh |
| Speed constant | 23rpm/v |
| Torque constant | 0.47N.M/A |
| Rotor inertia | 268gcm^2 |
| Number of pole pairs | 14Pairs |
| Motor weight without encoder | 161g |
| Motor weight with encoder | 179g |
| Max demagnetize temperature | 120℃ |
| Working Temperature | 20~80℃ |

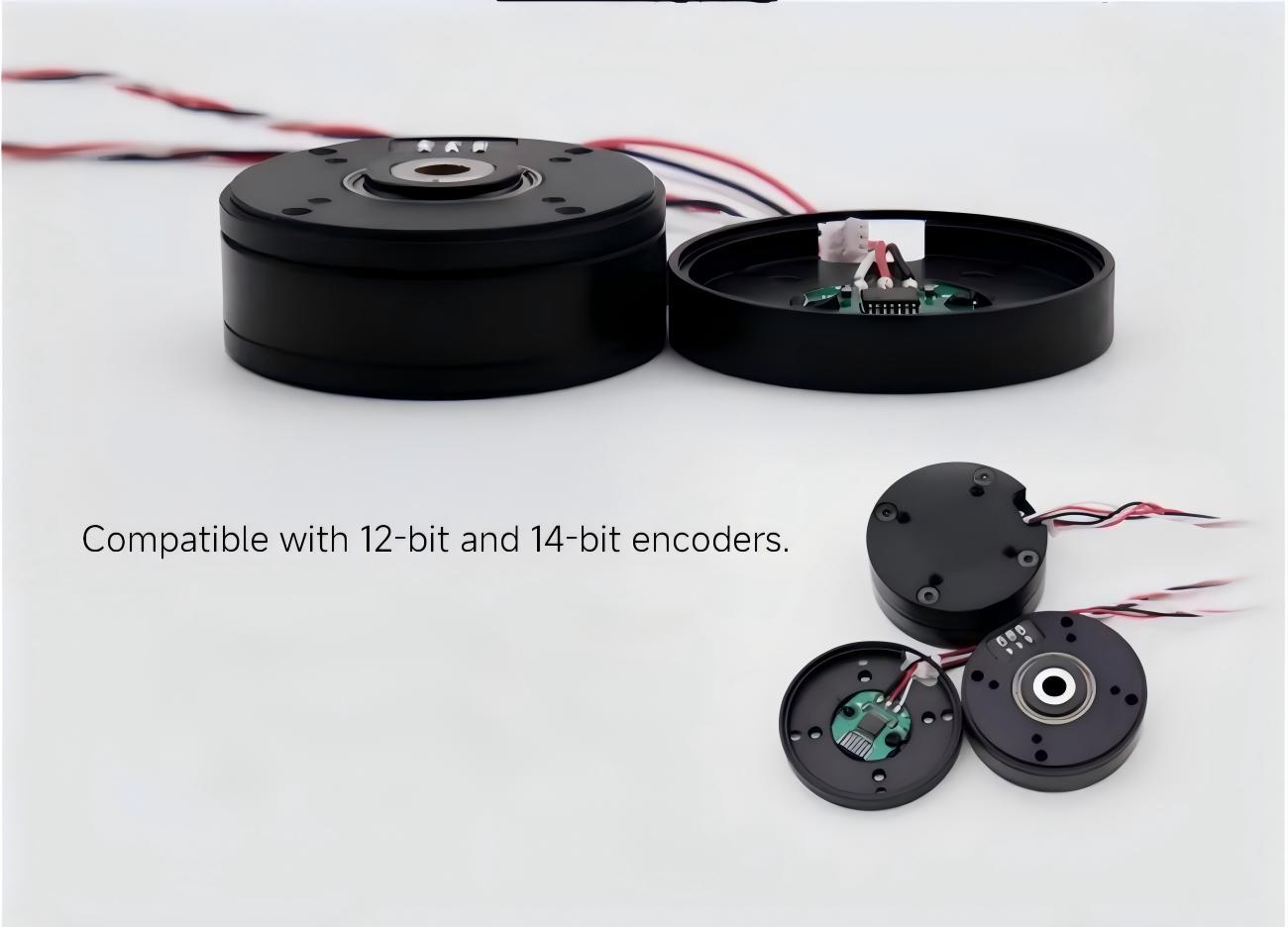

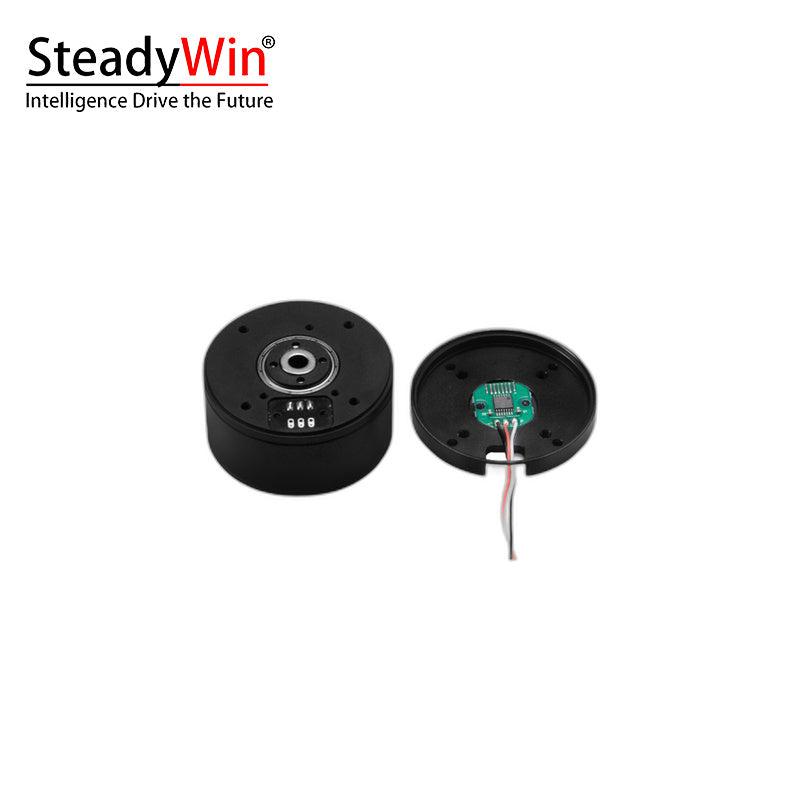

| Encoder type |
AS5048A/AS5600 |
-
