Technical Specifications
| Parameter | Value |
|---|---|
| Model | GB5225 |
| Nominal Voltage | 24V |
| Nominal Torque | 1.26N·m |
| Nominal Speed | 221RPM |
| Max Speed | 612RPM |
| Nominal Current | 1.28A |
| Stall torque | 1.9N·m |
| Stall current | 1.94A |
| Winding turns of motor | 50T |
| Phase resistance | 11.8Ω |
| Phase inductance | 11.31Mh |
| Speed constant | 14rpm/v |
| Torque constant | 0.98N.M/A |
| Rotor inertia | 933gcm^2 |
| Number of pole pairs | 11Pairs |
| Motor weight without encoder | 372g |
| Motor weight with encoder | 396g |
| Max demagnetize temperature | 120℃ |
| Working Temperature | 20~80℃ |

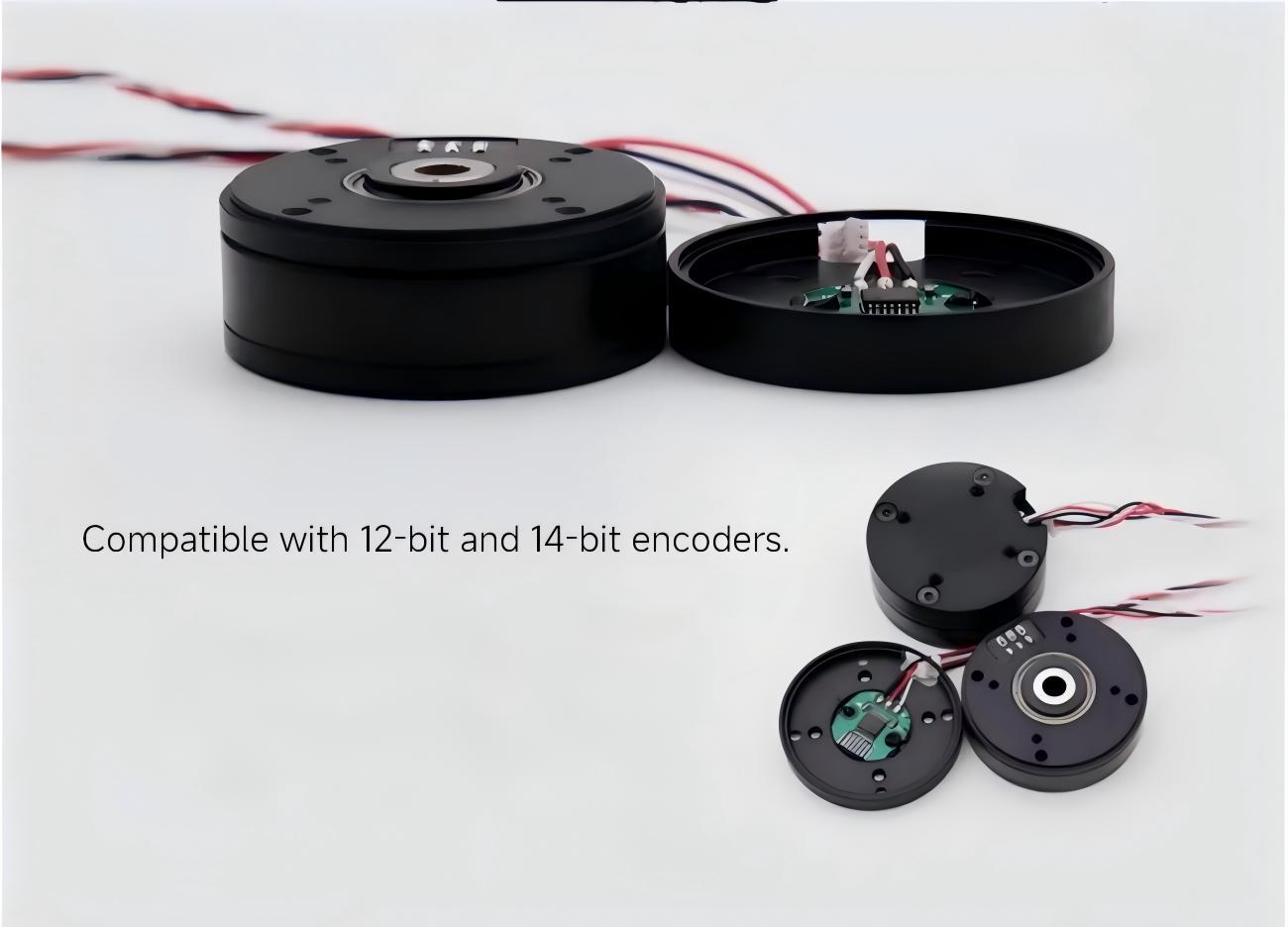

| Encoder type |
AS5048A/AS5600 |
-
Contact Seller:
+861368646****
SteadyWin presents 26 published products on Global Robot Market, giving buyers a direct way to review inquiry-ready offerings across Servo Motors.
This store page is intended for sourcing teams that want to compare listed products, review technical positioning, and contact the supplier for pricing, lead time, customization, or OEM and ODM discussions.
If the listed products match your project requirements, use the inquiry flow on the product page to request commercial and technical details from SteadyWin.
