Technical Specifications
| Parameter | Value |
|---|---|
| Model | PM100 |
| Nominal Voltage | 24V |
| Nominal Torque | 1.6N·m |
| Nominal Speed | 130RPM |
| Max Speed | 290RPM |
| Nominal Current | 1.75A |
| Stall torque | 2N·m |
| Stall current | 3A |
| Winding turns of motor | 30T |
| Phase resistance | 3Ω |
| Phase inductance | 31.5Mh |
| Speed constant | 11rpm/v |
| Torque constant | 1.13N.M/A |
| Rotor inertia | 2860gcm^2 |
| Number of pole pairs | 21Pairs |
| Motor weight without encoder | 454g |
| Motor weight with encoder | 460g |
| Max demagnetize temperature | 120℃ |
| Working Temperature | 20~80℃ |
| Encoder type |
AS5048A/AS5600 |

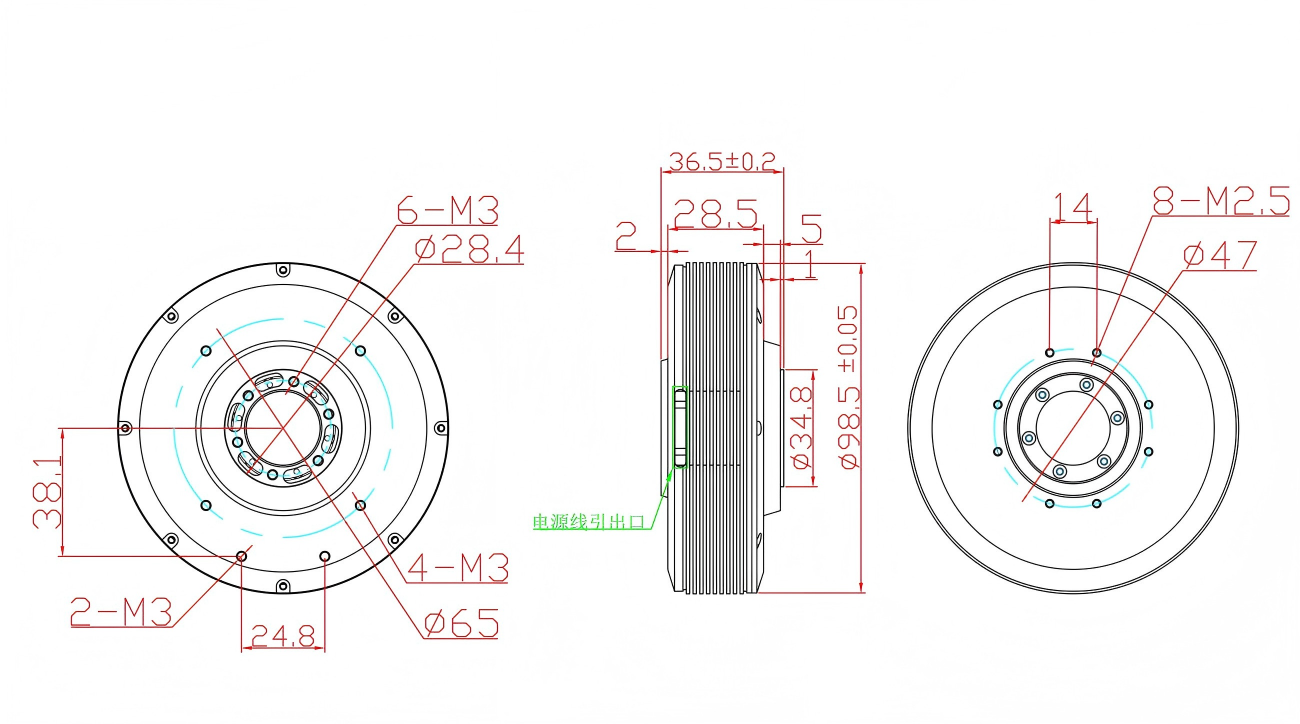

PM100_installation_diagram.pdf
-
