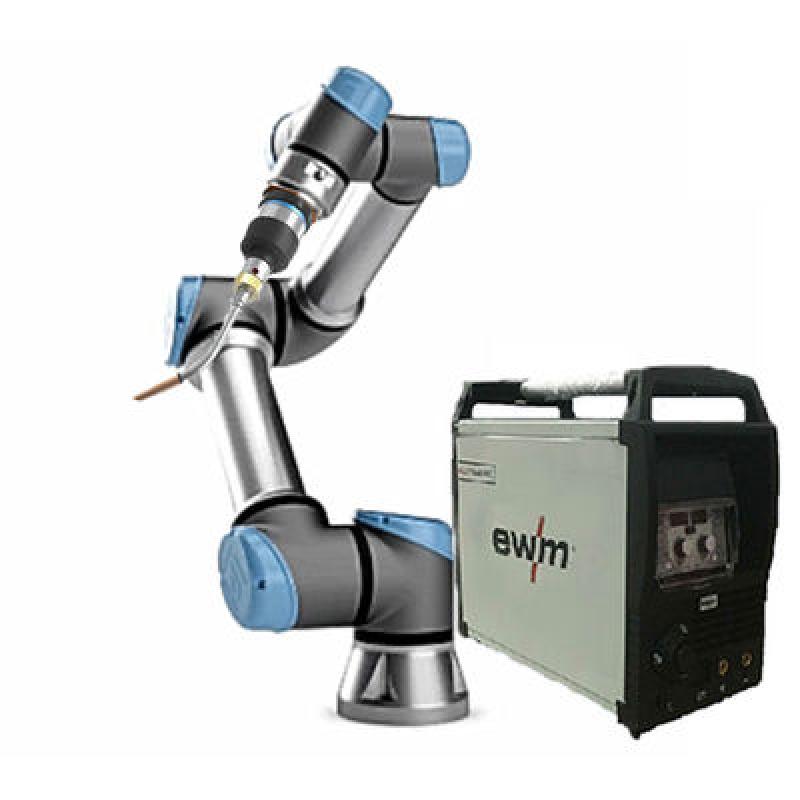

UR Universal robots ur5 cobot robot with TBI welding torch and EWM welder for cobot arm
Product image
Product Description
UNIVERSAL ROBOTS HAS SOLD MORE THAN 50,000 COLLABORATIVE ROBOTS WHICH ARE USED IN SEVERAL THOUSAND PRODUCTION ENVIRONMENTS EVERY DAY AROUND THE WORLD

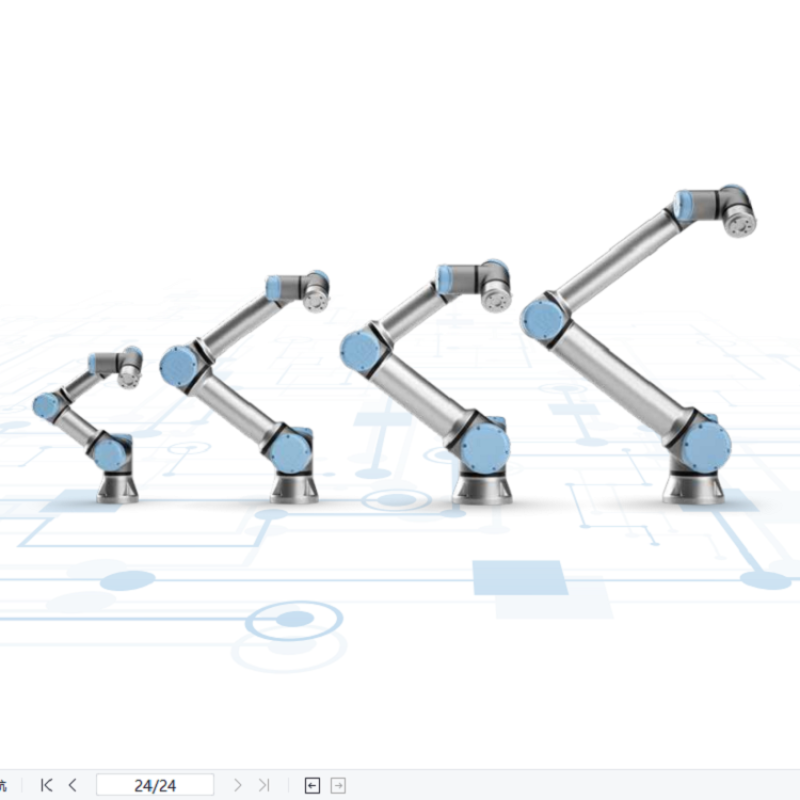

GET TO KNOW OUR UR5 ROBOT
The UR3e has a compact form factor making it a good fit for tight workspaces. Its small footprint is great for bench-tops or built directly inside machinery, making it well suited for light assembly and screwdriving applications. UR3e is also offered as an OEM robot system and with a 3-Position Teach pendant. Are you looking for the CB3 model? Find it here
| Specifications | |||||
|---|---|---|---|---|---|
| type | UR3 | UR5 | UR 10 | UR 16E | E15 |
| weight | 11kg | 23KG | 33.5KG | 33.1KG | 45KG |
| payload | 3kg | 5kg | 10kg | 16kg | 15kg |
| reach | 500mm | 850mm | 1300mm | 900mm | 700mm |
| power | 100W in typical cycle | 180W in typical cycle | 350W in typical cycle | 450W in typical cycle | |
| joint range | ±360° | ||||
| joint speed | J1-J4 180°/S J5-J6 200°/S | J1-J4 180°/S J5-J6 200°/S | J1-J4 180°/S J5-J6 200°/S | J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S | J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S |
| tool speed | 2m/s | ||||
| repeatability | ±0.05mm/±0.03mm(under normal conditions) | ||||
| degree of freedom | 6 | ||||
| control box size | 536*445*319mm | ||||
| end I/O port | digital input:3,digital output:3,analog input:2 | ||||
| control box I/O port | digital input:16,digital output:16, analog input:2,analog output:2 | ||||
| I/O source | 24V 2A | ||||
| communication | TCP/IP/MODBUS | ||||
| programming | graphical programming,remote process call | ||||
| IP classification | IP54/IP66 | ||||
| collaborative operation | 10 advanced configurations for safety | ||||
| main material | aluminum alloy | ||||
| working temperature | 0-50â | ||||
| power input | 200-240V AC,50-60Hz | ||||
| cable | cable to connect the control box:5m,cable to connect teach pendant:5m | ||||
Company Profile
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
|
Model
|
AUBO i3
|
|
Maximum reach
|
625mm
|
|
Maximum payload
|
3kg
|
|
Weight
|
15.5 kg
|
|
Power
|
DC48V
|
Product Features
1.Multiple Models This series of robots can be used in small parts assembly, dispensing, machine tending, material handling, electronics and many other applications in general industrial fields. 2.Reliable Performance It can adapt to harsh working environment, and can also be equipped with integrated joints which are easy to disassemble and transport. 3.Easy to Maintain Considering that improving maintainability is a key factor to reduce costs, the robot's after-sales and maintenance time is reduced by 15%. 4.Technical Support We will provide you with long-term technical services. If you have any technical problems or other needs during using our robot, you are welcome to contact us.
-
Address:
No. 668, East Beijing Road, Huangpu District, Shanghai, China
-
Contact Seller:
+861512102****
Xiangjing (Shanghai) M&E Technology Co., Ltd is a leading provider of industrial robot solutions, specialized in ABB, KUKA, FANUC, and YASKAWA robots, as well as their own brand CNGBS. We provide integrated solutions for welding, palletizing, handling, and collaborative robot applications.
