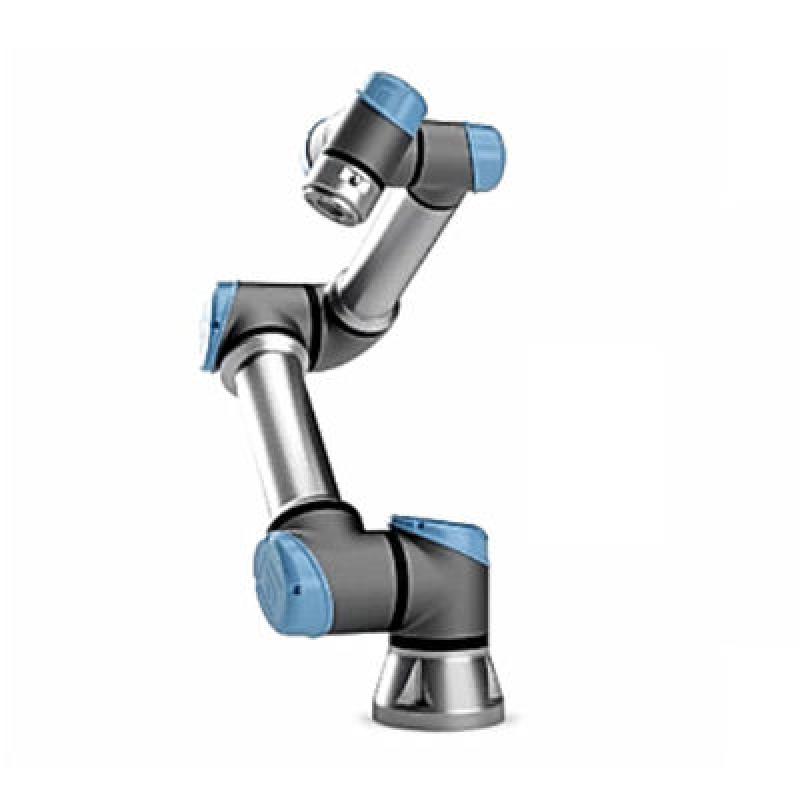

UR Universal robots ur5 cobot robot with TBI welding torch and Panasonic YD-350 welder for cobot arm
Product image
Product Description
UNIVERSAL ROBOTS HAS SOLD MORE THAN 50,000 COLLABORATIVE ROBOTS WHICH ARE USED IN SEVERAL THOUSAND PRODUCTION ENVIRONMENTS EVERY DAY AROUND THE WORLD

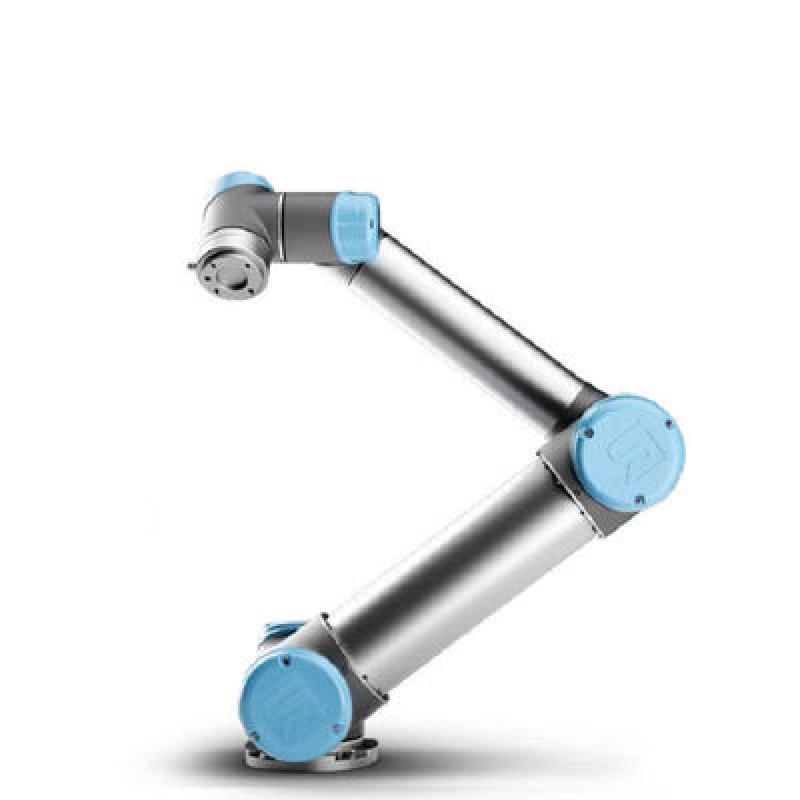

GET TO KNOW OUR UR5 ROBOT
The UR3e has a compact form factor making it a good fit for tight workspaces. Its small footprint is great for bench-tops or built directly inside machinery, making it well suited for light assembly and screwdriving applications. UR3e is also offered as an OEM robot system and with a 3-Position Teach pendant. Are you looking for the CB3 model? Find it here
| Specifications | |||||
|---|---|---|---|---|---|
| type | UR3 | UR5 | UR 10 | UR 16E | E15 |
| weight | 11kg | 23KG | 33.5KG | 33.1KG | 45KG |
| payload | 3kg | 5kg | 10kg | 16kg | 15kg |
| reach | 500mm | 850mm | 1300mm | 900mm | 700mm |
| power | 100W in typical cycle | 180W in typical cycle | 350W in typical cycle | 450W in typical cycle | |
| joint range | ±360° | ||||
| joint speed | J1-J4 180°/S J5-J6 200°/S | J1-J4 180°/S J5-J6 200°/S | J1-J4 180°/S J5-J6 200°/S | J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S | J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S |
| tool speed | 2m/s | ||||
| repeatability | ±0.05mm/±0.03mm(under normal conditions) | ||||
| degree of freedom | 6 | ||||
| control box size | 536*445*319mm | ||||
| end I/O port | digital input:3,digital output:3,analog input:2 | ||||
| control box I/O port | digital input:16,digital output:16, analog input:2,analog output:2 | ||||
| I/O source | 24V 2A | ||||
| communication | TCP/IP/MODBUS | ||||
| programming | graphical programming,remote process call | ||||
| IP classification | IP54/IP66 | ||||
| collaborative operation | 10 advanced configurations for safety | ||||
| main material | aluminum alloy | ||||
| working temperature | 0-50â | ||||
| power input | 200-240V AC,50-60Hz | ||||
| cable | cable to connect the control box:5m,cable to connect teach pendant:5m | ||||
Company Information
-
Address:
No. 668, East Beijing Road, Huangpu District, Shanghai, China
-
Contact Seller:
+861512102****
Xiangjing (Shanghai) M&E Technology Co., Ltd is a leading provider of industrial robot solutions, specialized in ABB, KUKA, FANUC, and YASKAWA robots, as well as their own brand CNGBS. We provide integrated solutions for welding, palletizing, handling, and collaborative robot applications.
