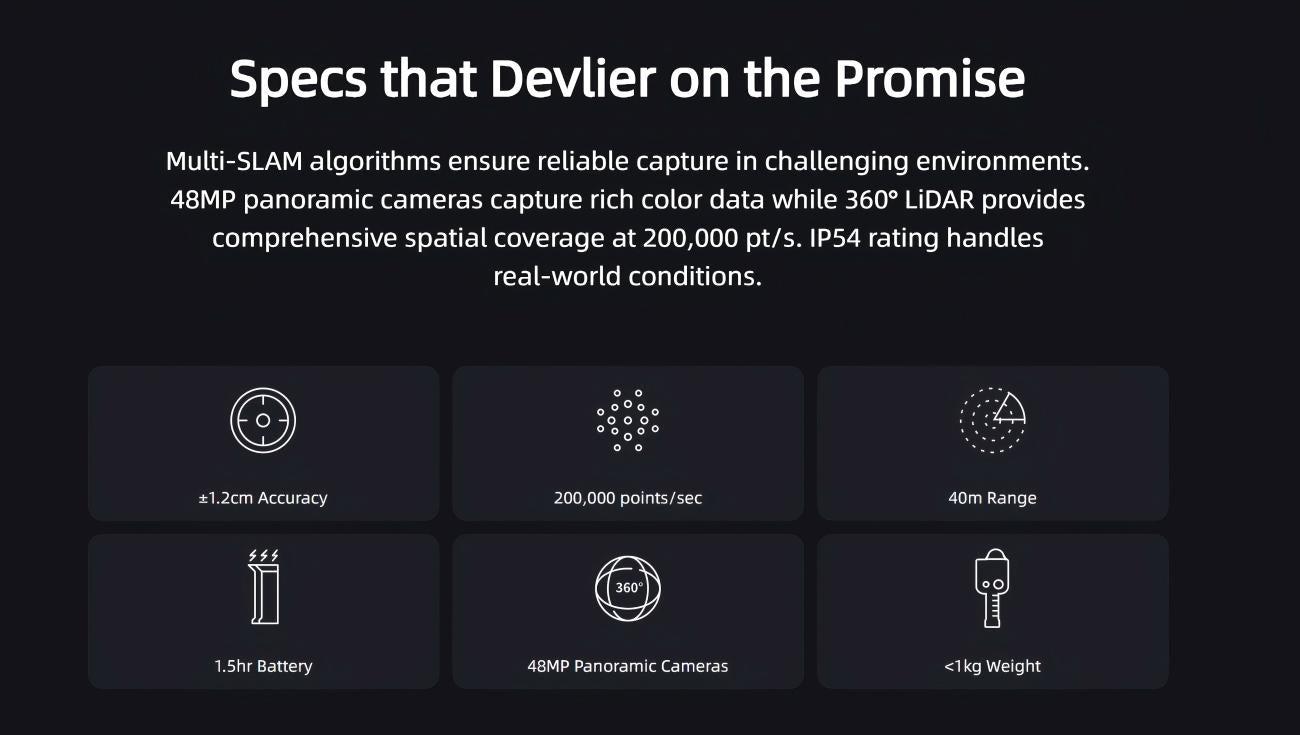

Technical Specifications
| Parameter | Value |
|---|---|
| Device Performance | |
| Power Input | 14.4V |
| Weight | 1kg |
| Storage Capacity | TF card 256G |
| OperatingTemperature | -20°C~50°C |
| Product Shell | Navigational Aluminum |
| Operating Time | 1.5h |
| Number of Cameras | 4 |
| APP WiFi Distance | 20m |
| Power Consumption | <20W |
| Data Interface | USB3.1 Gen2 |
| Connection Mode |
Wifi/Bluetooth |
| Protection Level | IP54 |
| Product Shell | Navigational Aluminum |
| Power Supply | Fast-lock battery/external power |
| Battery Capacity | 28.8wh |
| Visual-Aided Positioning | Supported |
| RTK Module | Supported |
| LiDAR | |
| Relative Accuracy | 1.2cm |
| Repeat Accuracy | 2cm |
| Working Range | 0.1m~40m@10%, 70m@80% |
| Scan Mode | Mobile |
| Scan Speed | 200,000 points/s |
| Laser Class | Class1/905nm |
| Absolute Accuracy | 3cm |
| Horizontal Accuracy |
0.015° |
| LiDAR FOV | 360°*-7~+52° |
| Vision Module | |
| Camera FOV | Color panorama HDV 360°*360° |
| Panoramic Image Resolution | Max 56MP |
| Camera Resolution | 48 MP x2 |
| Data and Storage | |
| Calculating Mode | Real-time calculating/Mixed calculating |
| Point Cloud Format | .las |
| Calculating Software | Lixel Studio post-processing software for Win |
| Color Point Cloud | Supported |
-
