Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value (Ratio 25-50) | Value (Ratio 25-80) |
|---|---|---|

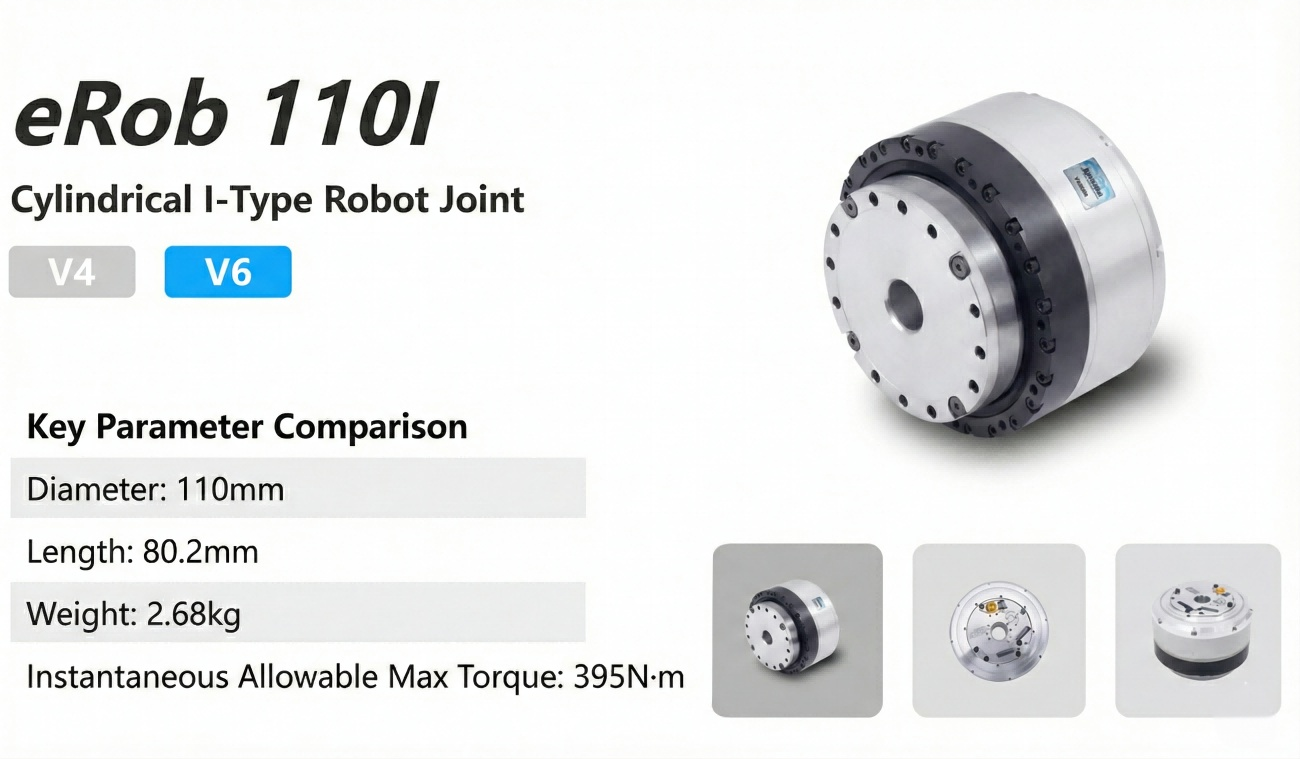

| Model | eRob110HXXI | eRob110HXXI |
| Strain wave gear-ratio | 25-50 | 25-80 |
| Peak torque for start and stop(Nm) | 127 | 178 |
| Permissible max.value at average load torque(Nm) | 72 | 113 |
| Rated torque(Nm) | 51 | 82 |
| Permissible maximum momentary torque(Nm) | 242 | 332 |
| Max. output rotational speed(RPM) |
60 |
37.5 |
| Motor power(W) |
723 |
723 |
| Power Input Voltage(V) | 48V (±10%) Please make sure to read "Comparison of Switching Power Supply and ePower" and the "eRob Rotary Actuator User Manual" Chapter 3, for clear instructions on powering the eRob module. |
48V (±10%) Please make sure to read "Comparison of Switching Power Supply and ePower" and the "eRob Rotary Actuator User Manual" Chapter 3, for clear instructions on powering the eRob module. |
| Strain wave gear output inertia(g-mm²) | 717286 | 717286 |
| Strain wave gear output mass(KG) |
0.56 |
0.56 |

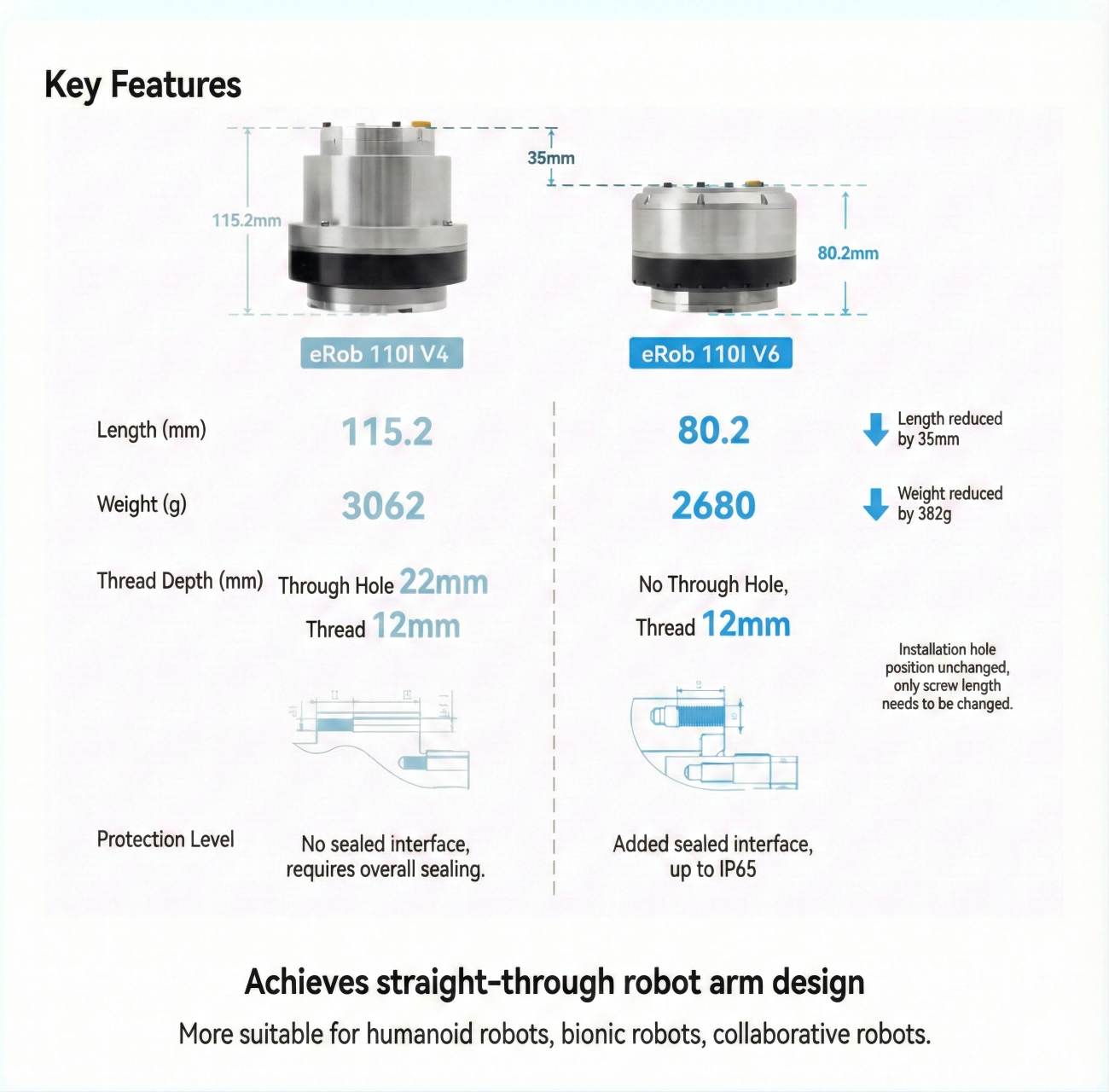

| Outer diameter*length | 110*80.2mm | 110*80.2mm |
| Strain wave gear input inertia(g-mm²) | 308632 | 308632 |
| Strain wave gear input mass(KG) | 0.53 | 0.53 |
| Weight(KG) | 2.57 | 2.57 |
| Common parameters | ID: 18mm, IP grating:IP54*, Brake model: friction brake | ID: 18mm, IP grating:IP54*, Brake model: friction brake |
| Optional device |

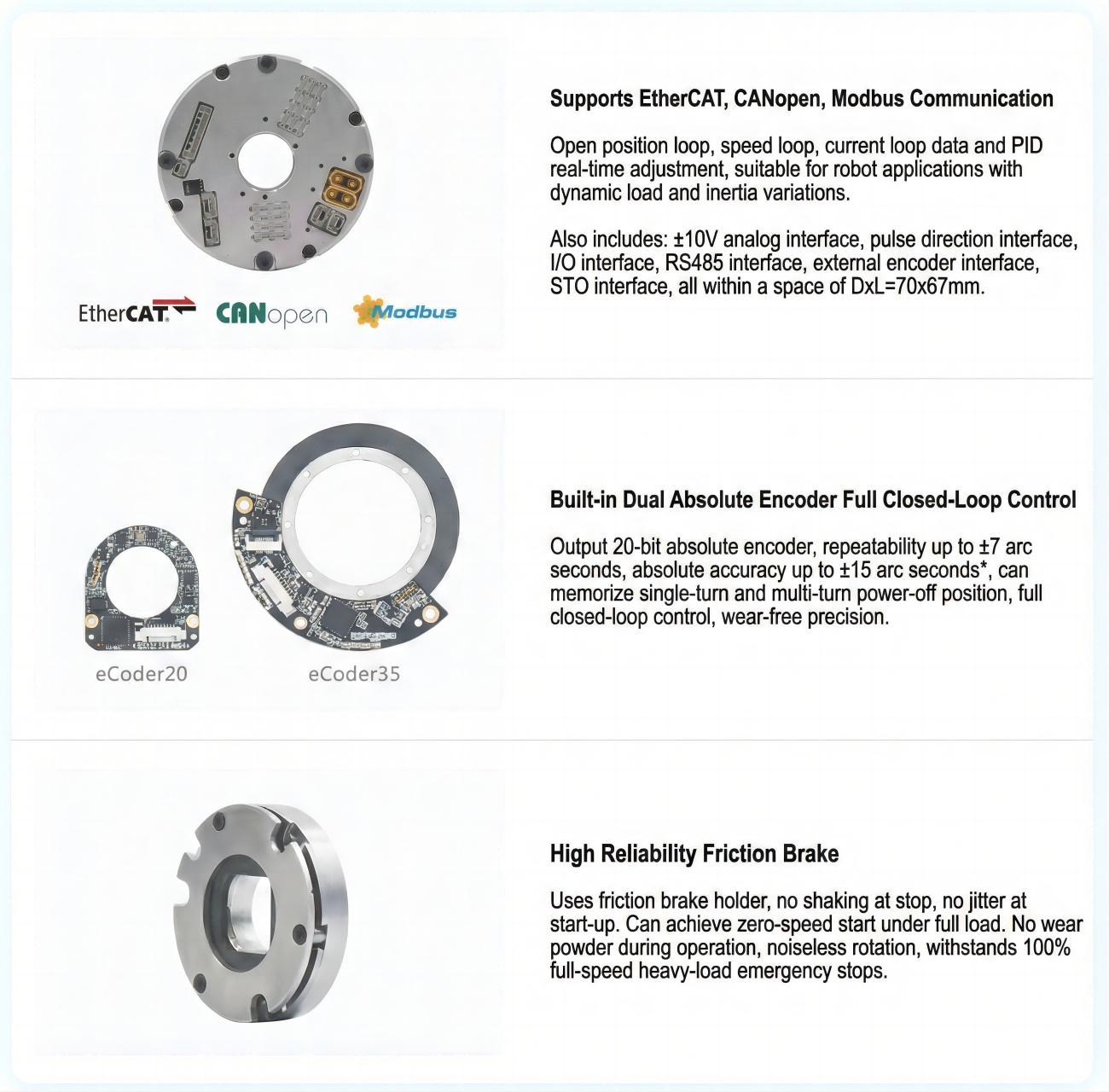

Communication type: EtherCAT / CANopen/Modbus, Output encoder resolution: 19Bit. Repeatability/Accuracy: ±7/±15 arc seconds or ±10/±25 arc seconds. |
Communication type: EtherCAT / CANopen/Modbus, Output encoder resolution: 19Bit. Repeatability/Accuracy: ±7/±15 arc seconds or ±10/±25 arc seconds. |
| EtherCAT version rotary actuator |
Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. |
Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. |
| CANopen version rotary actuator | Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. | Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. |
EROB110I EtherCAT-Product_instalation_drawing.pdf
-
