Technical Specifications
| Strain wave gear-ratio | 14-50 Ultra-Flat | 14-80 Ultra-Flat | 14-100 Ultra-Flat |
|---|---|---|---|
| Peak torque for start and stop(Nm) | 12 | 16 | 19 |
| Permissible max.value at average load torque(Nm) | 4.8 | 7.7 | 7.7 |
| Rated torque(Nm) | 3.7 | 5.4 | 5.4 |
| Permissible maximum momentary torque(Nm) | 23 | 35 | 35 |
| Max. output rotational speed(RPM) | 60 | 37.5 | 30 |
| Motor power(W) | 75 | 75 | 75 |
| Power Input Voltage(V) |
48V (±10%) |
48V (±10%) |
48V (±10%) |
| Strain wave gear output inertia(g-mm²) | 54030 | 54030 | 54030 |
| Strain wave gear output mass(KG) | 0.13 | 0.13 | 0.13 |

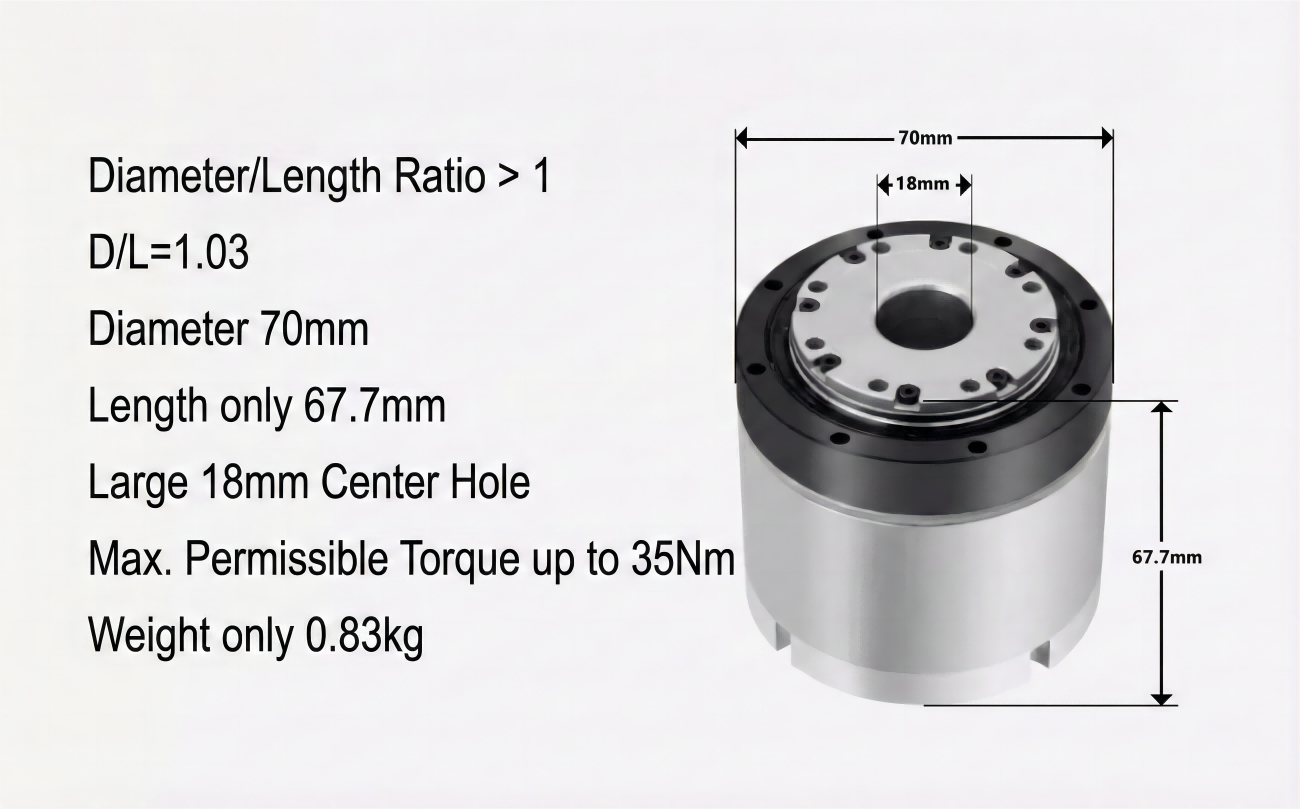

| Outer diameter*length | 70*60.4mm | 70*60.4mm | 70*60.4mm |
| Strain wave gear input inertia(g-mm²) | 43656 | 43656 | 43656 |
| Strain wave gear input mass(KG) | 0.15 | 0.15 | 0.15 |
| Weight(KG) | 0.77 | 0.77 | 0.77 |
| Common parameters | ID: 18mm, IP grating:IP54*, Brake model: friction brake | ID: 18mm, IP grating:IP54*, Brake model: friction brake | ID: 18mm, IP grating:IP54*, Brake model: friction brake |

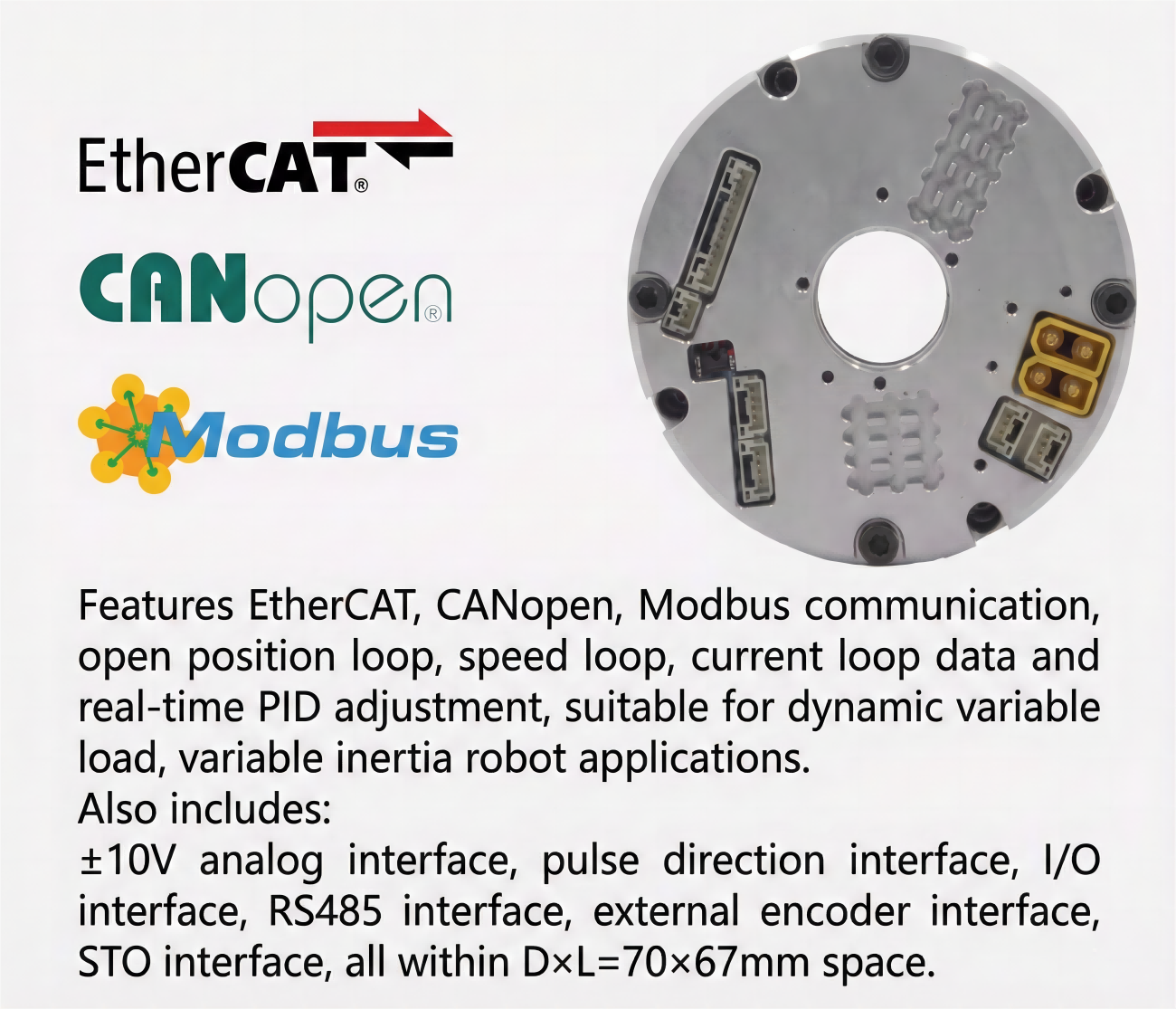

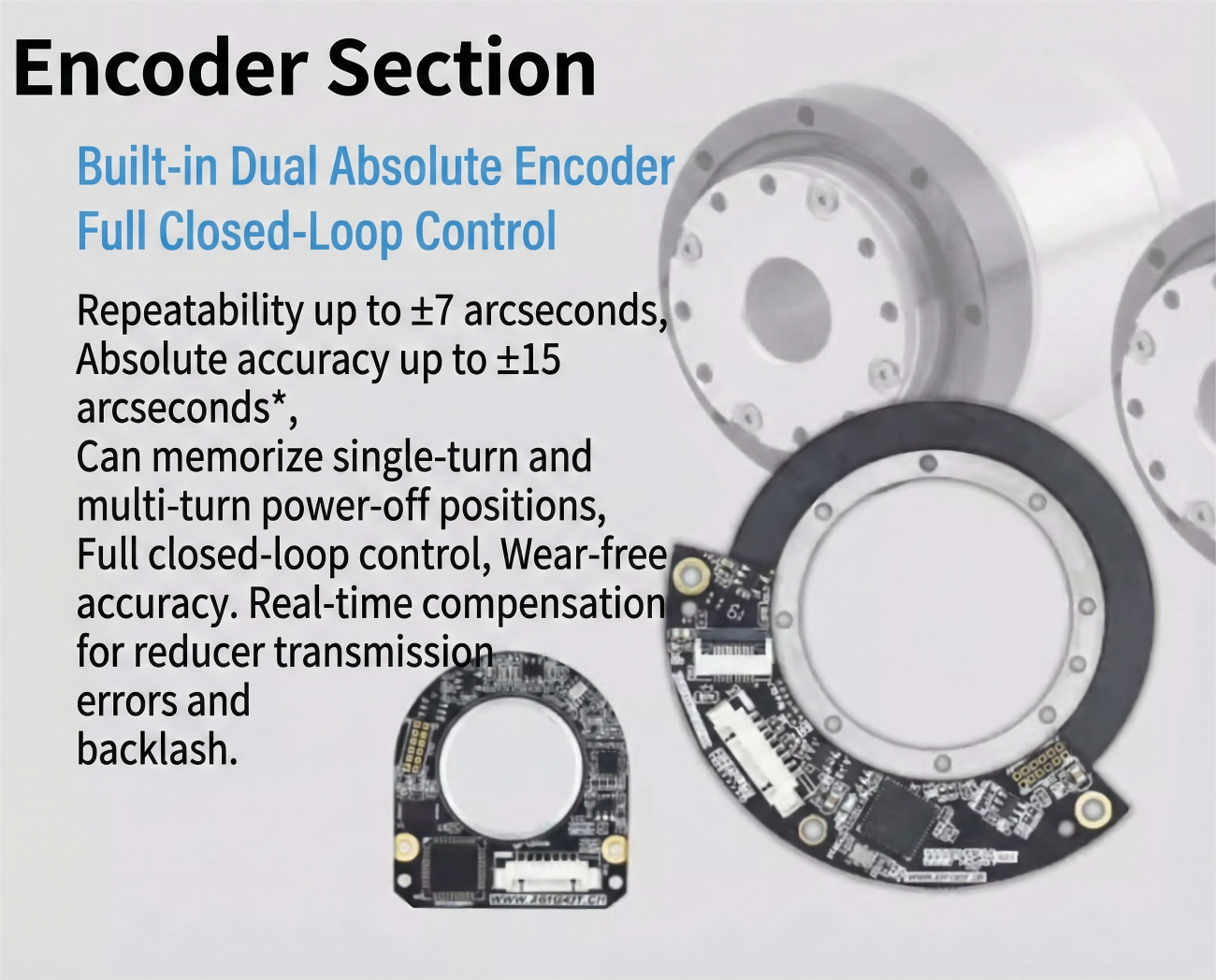

| Optional device | Communication type: EtherCAT / CANopen/Modbus, Output encoder resolution: 19Bit. Repeatability/Accuracy: ±7/±15 arc seconds or ±10/±25 arc seconds. | Communication type: EtherCAT / CANopen/Modbus, Output encoder resolution: 19Bit. Repeatability/Accuracy: ±7/±15 arc seconds or ±10/±25 arc seconds. | Communication type: EtherCAT / CANopen/Modbus, Output encoder resolution: 19Bit. Repeatability/Accuracy: ±7/±15 arc seconds or ±10/±25 arc seconds. |
| EtherCAT version rotary actuator | Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. | Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. | Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. |
| CANopen version rotary actuator | Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. | Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. | Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. |
-
