Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications

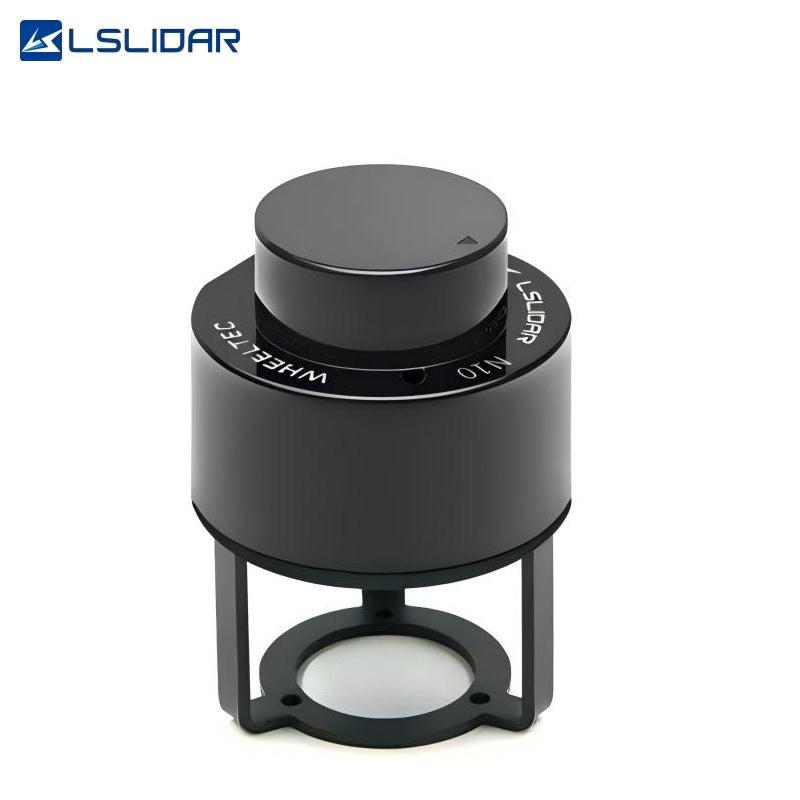

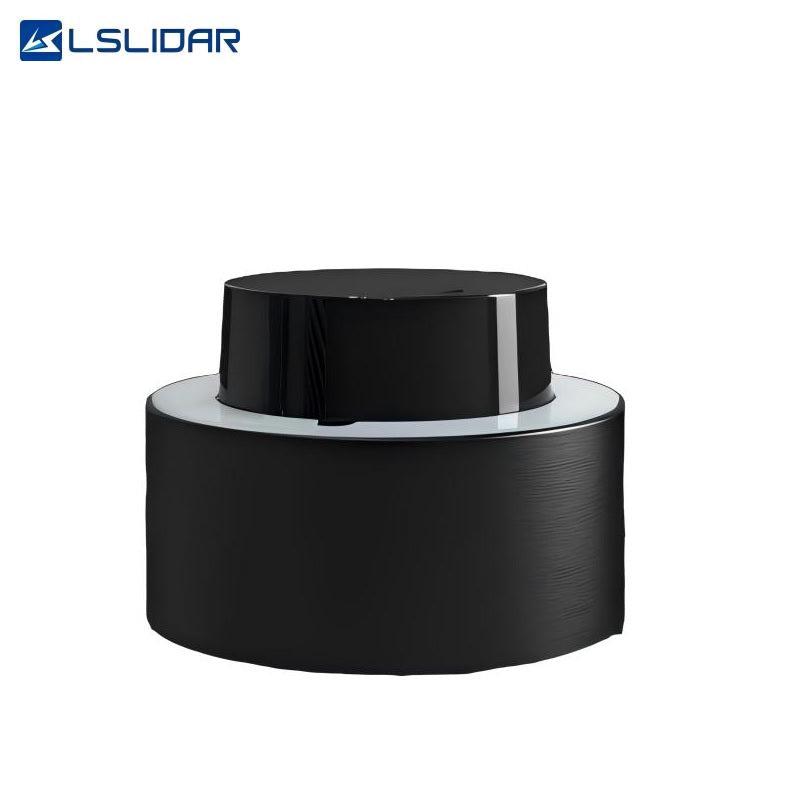

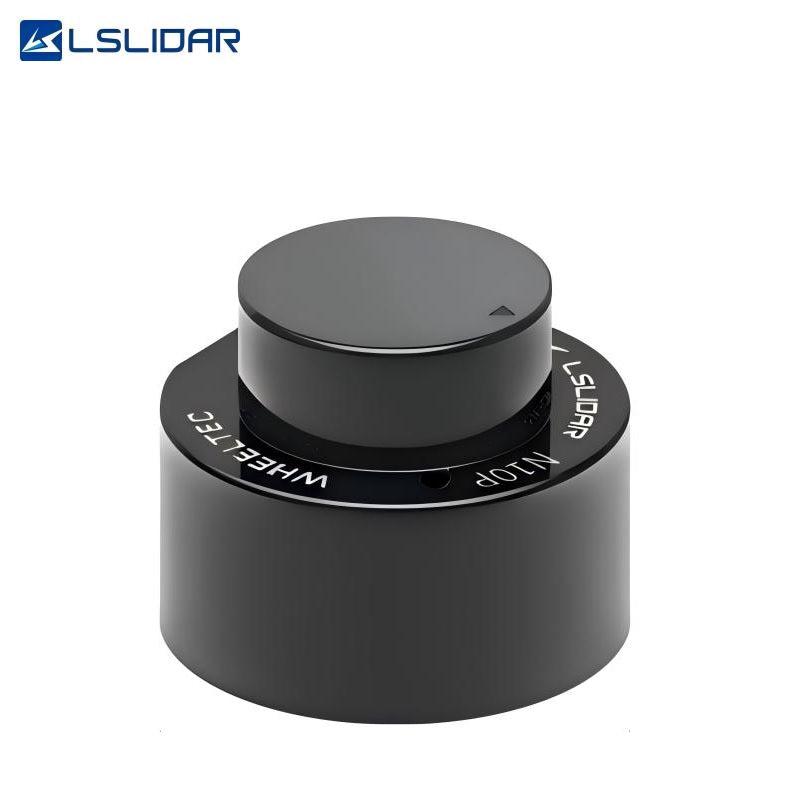

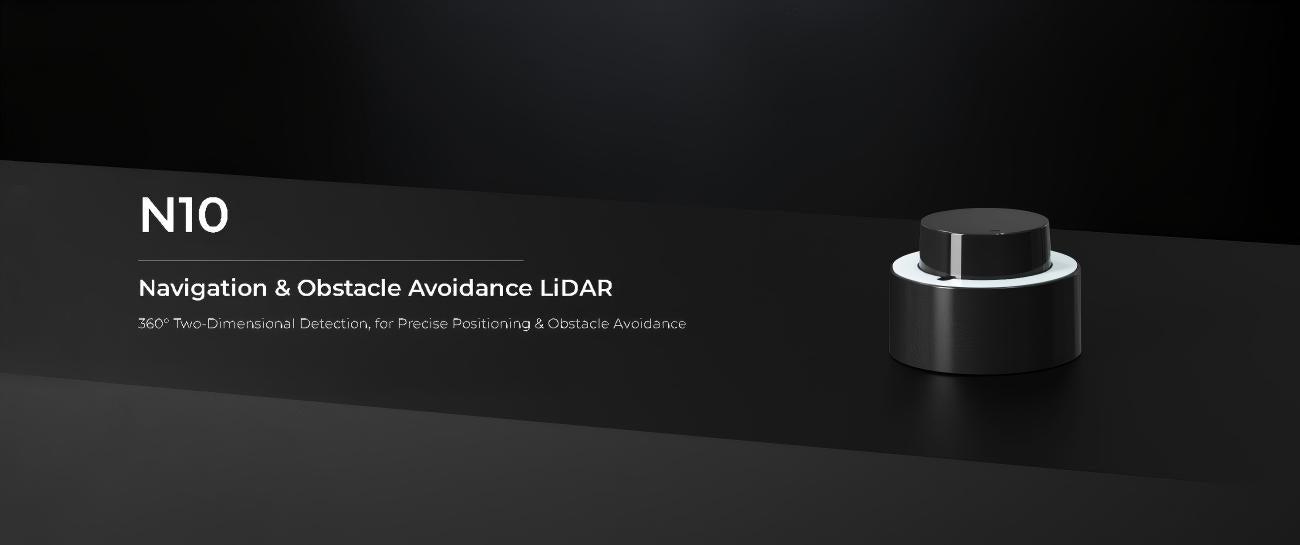

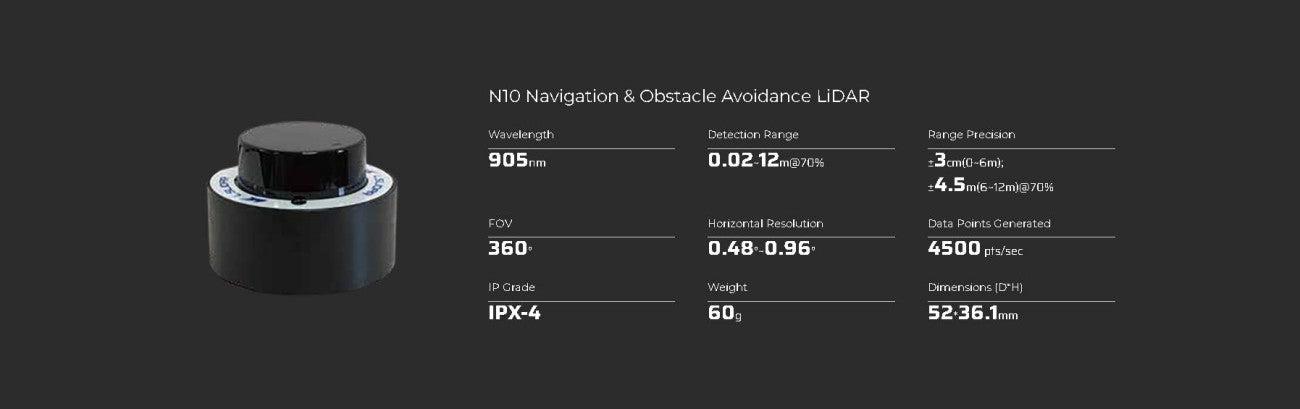

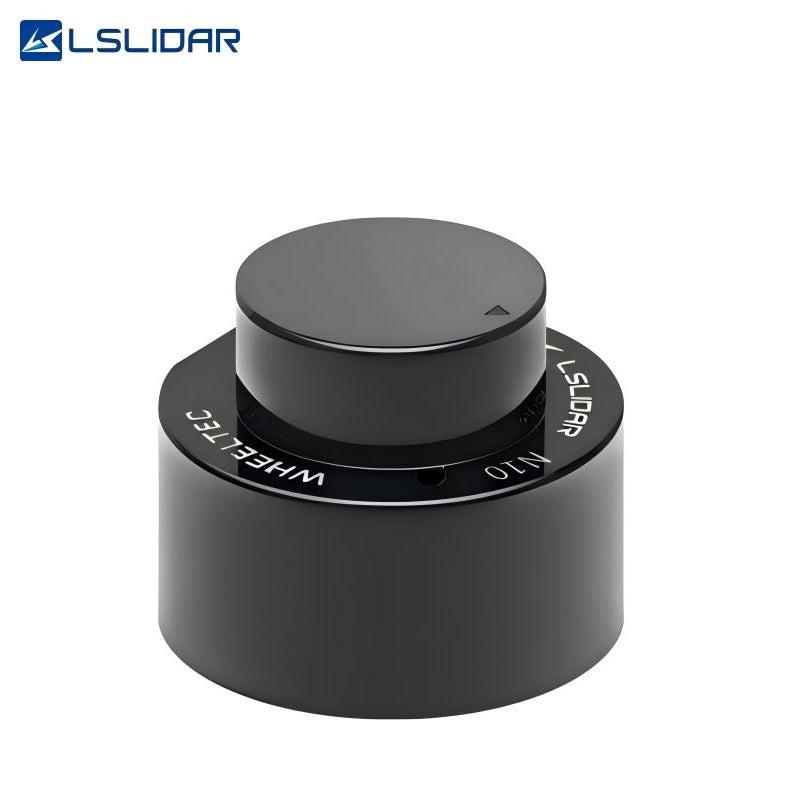

| Parameter | N10 |
|---|---|
| Laser Wavelength | 905 nm |
| Laser Class | Class I |
| Data Content | Distance、Angle、Intensity |
| Detection Range | 0.02~12m@70% |
| Range Precision | ±3cm(0~6m); ±4.5cm(≥6m)@70% |
| PRF | 4.5KHz |
| Scanning Angle | 360° |
| FPS | 6~12Hz |
| Angular Resolution (H) | 0.48°~0.96° |
| Data Point Generating Rate | 4,500 pts/sec |
| Communication Interface | Standard asynchronous serial port(Baud rate 230,400 bps） |
| Input Voltage | 5V DC (4.75V~5.25V DC) |
| Power Consumption |
1W
|
| Operating Temperature | -10℃~40℃ |
| IP Grade | IPX-4 |
| Anti-light | 4K lux |
| Weight | ≈60 g |

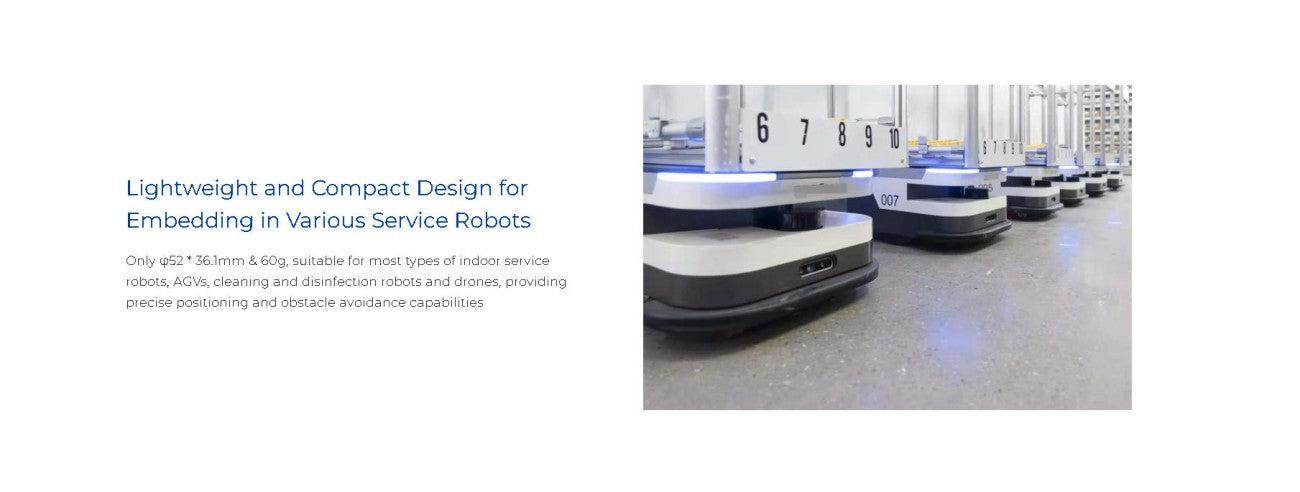

| Dimensions (D × H) | Ф52x36.1 mm |
-
