Technical Specifications
| Parameter | Value | Value | Value | Value | Value |
|---|---|---|---|---|---|
| Model | eRob142HXXI | ||||
| Strain wave gear-ratio | 32-50 | 32-80 | 32-100 | 32-120 | 32-160 |
| Peak torque for start and stop(Nm) | 281 | 395 | 433 | 459 | 484 |
| Permissible max.value at average load torque(Nm) | 140 | 217 | 281 | 281 | 281 |
| Rated torque(Nm) | 99 | 153 | 178 | 178 | 178 |
| Permissible maximum momentary torque(Nm) | 497 | 738 | 841 | 892 | 892 |
| Max. output rotational speed(RPM) | 40 | 25 | 20 | 16.7 | 12.5 |
| Motor power(W) | 1000 | ||||
| Power Input Voltage(V) | 48V (±10%) | ||||
| Strain wave gear output inertia(g-mm²) | 2589596 | ||||
| Strain wave gear output mass(KG) | 1.21 | ||||

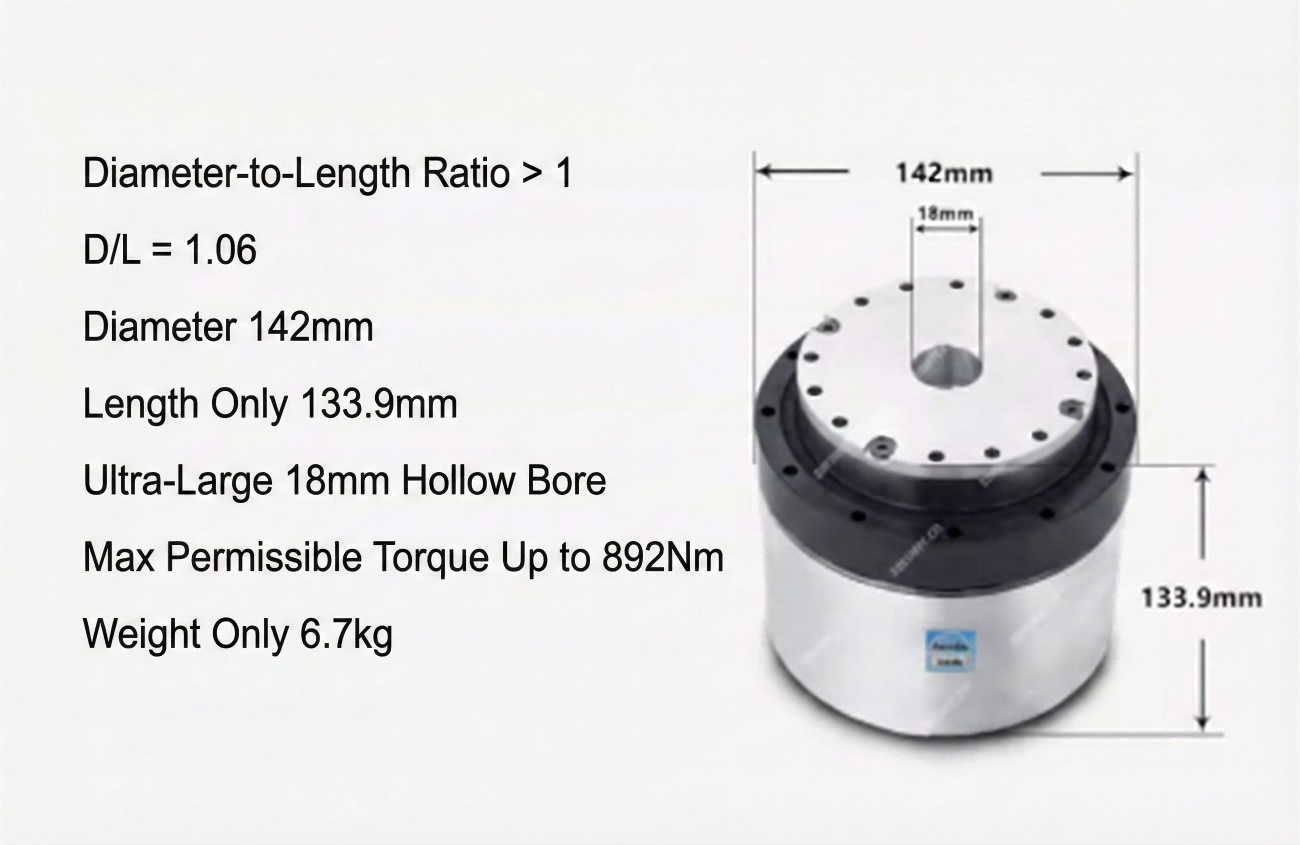

| Outer diameter*length | 142*133.9mm | ||||
| Strain wave gear input inertia(g-mm²) | 1244894 | ||||
| Strain wave gear input mass(KG) | 1.33 | ||||
| Weight(KG) | 6.49 | ||||

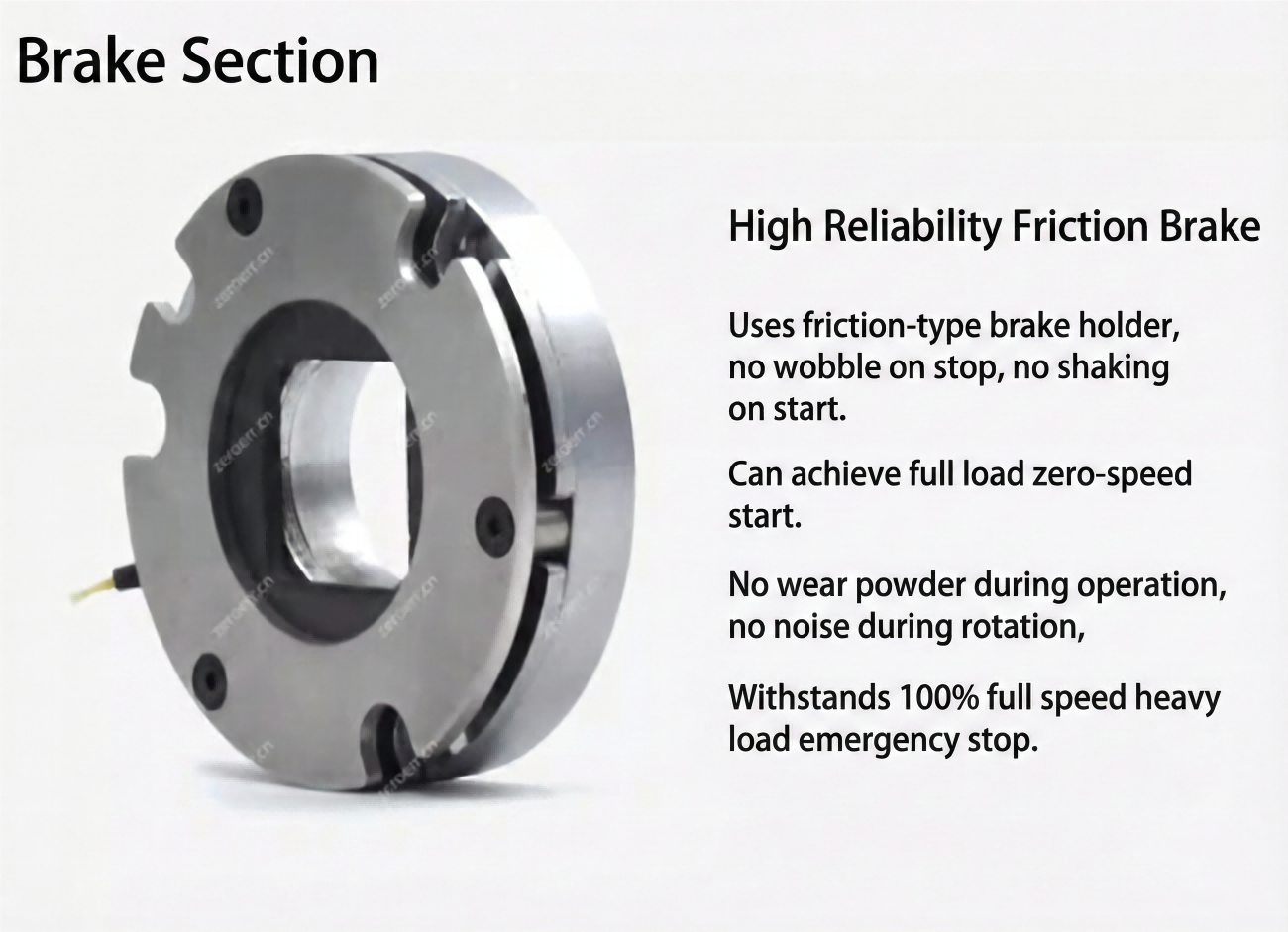

| Common parameters | ID: 18mm, IP grating:IP54*, Brake model: friction brake | ||||

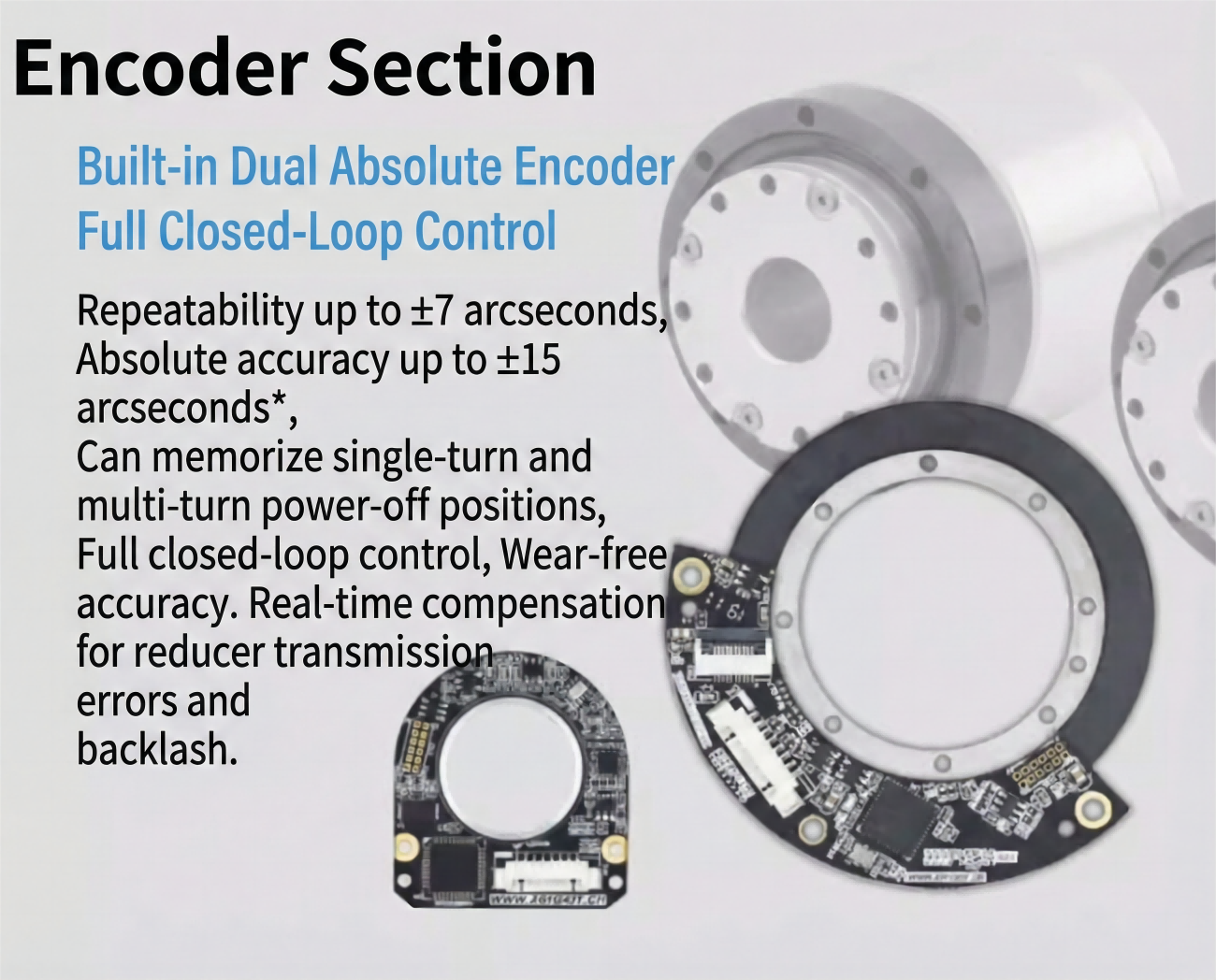

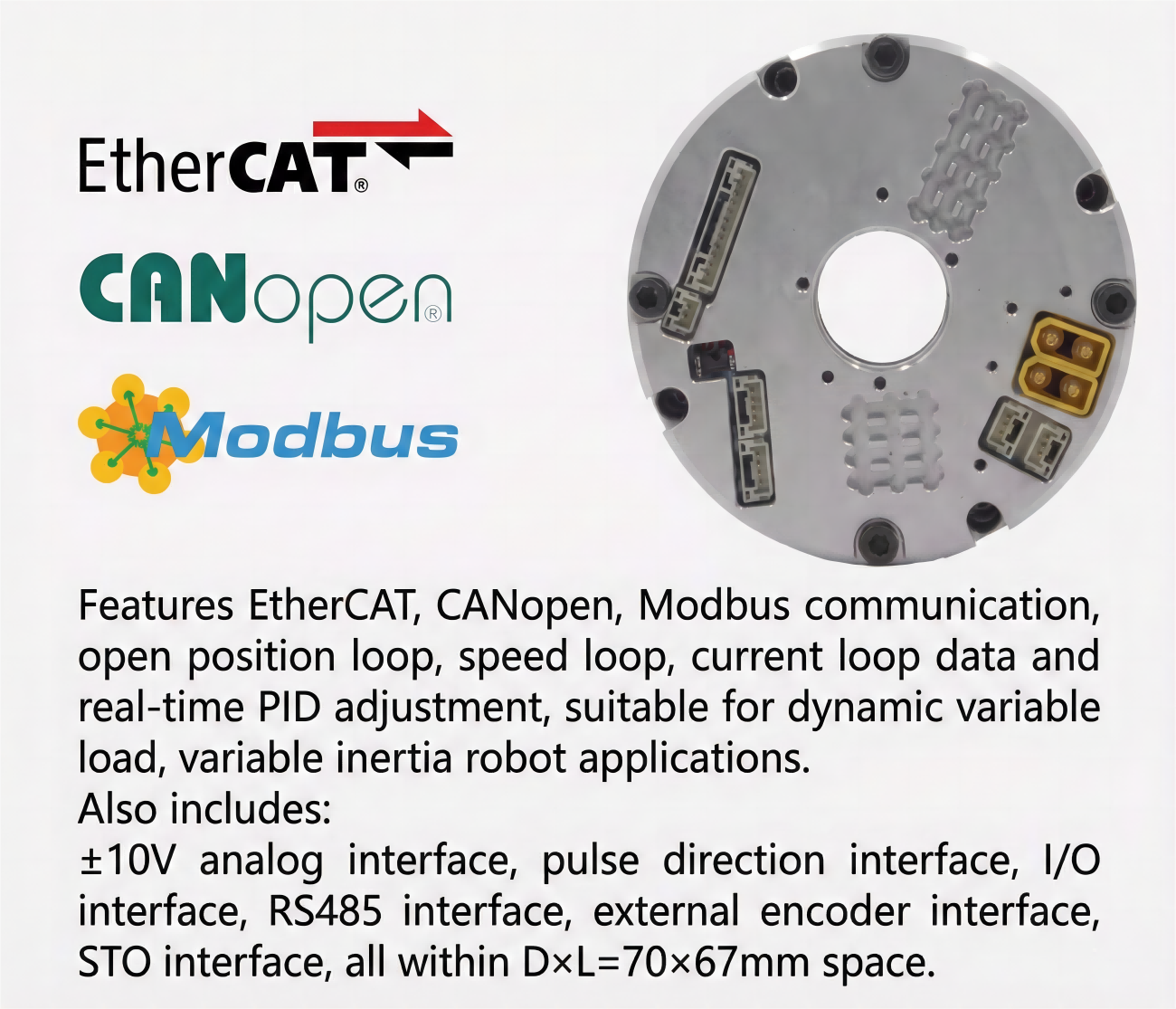

| Optional device | Communication type: EtherCAT / CANopen/Modbus, Output encoder resolution: 19Bit. Repeatability/Accuracy: ±7/±15 arc seconds or ±10/±25 arc seconds. | ||||
| EtherCAT version rotary actuator | Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. | ||||
| CANopen version rotary actuator | Optional interface: RS485, Pulse/DIR, I/O, ±10V Analog and STO. | ||||
EROB142I EtherCAT-Product_instalation_drawing.pdf
-
